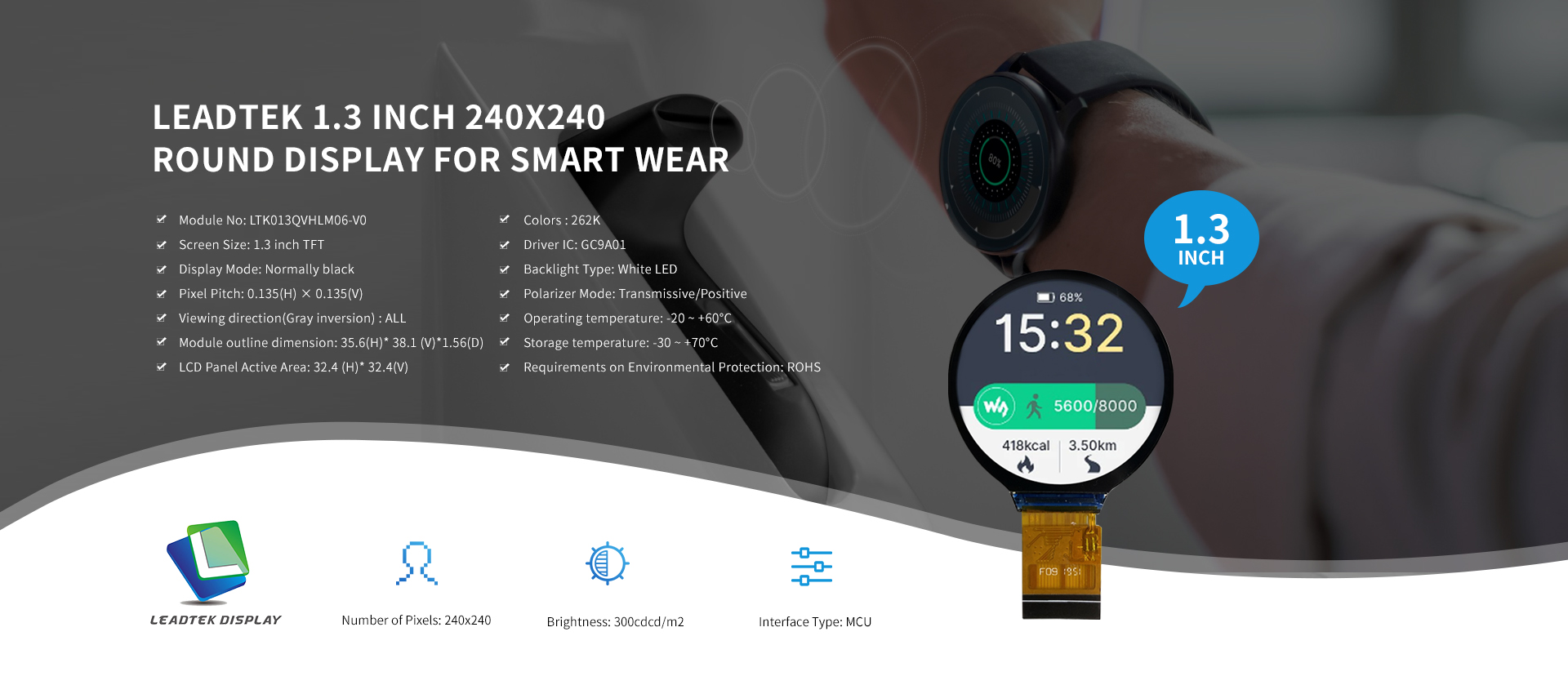

Leadtek 1.3 inch 240x240 Round Display for Smart Wear
LTK013QVHLM06-V0 is a Transmissive type color active matrix liquid crystal display (LCD). It is composed of a TFT LCD panel, driver IC, FPC, backlight.
Features：
-
Shape: Round
-
240x240 Resolution
-
24pin MCU interface
-
IPS Display Mode
-
Backlight with different brightness options
-
Specific touch panel can be designed & customized
-
Green product (RoHS & Halogen free product)
-
Factory Direct Supply
Application：
Smart Wear
General Description:
| Item | Specification | Unit |
| Panel size | 1.28 | inch |
| Display Mode | Normally black | -- |
| Number of Pixels | 240(RGB)x240 | Pixel |
| Pixel Pitch | 0.135(H) × 0.135(V) | -- |
| Viewing direction(Gray inversion) | ALL | -- |
| Module outline dimension | 35.6(H)* 38.1 (V)*1.56(D) | mm |
| LCD Panel Active Area | 32.4 (H)* 32.4(V) | mm |
| Colors | 262K | -- |
| Driver IC | GC9A01 | -- |
| Interface Type | MCU | -- |
| Backlight Type | White LED | -- |
To learn more about the product, please click on the video https://youtu.be/pSZppKie6n8
Once again, we thank you for your continuous support and trust in our company. Should you have any questions or require
further information, please do not hesitate to contact us.
