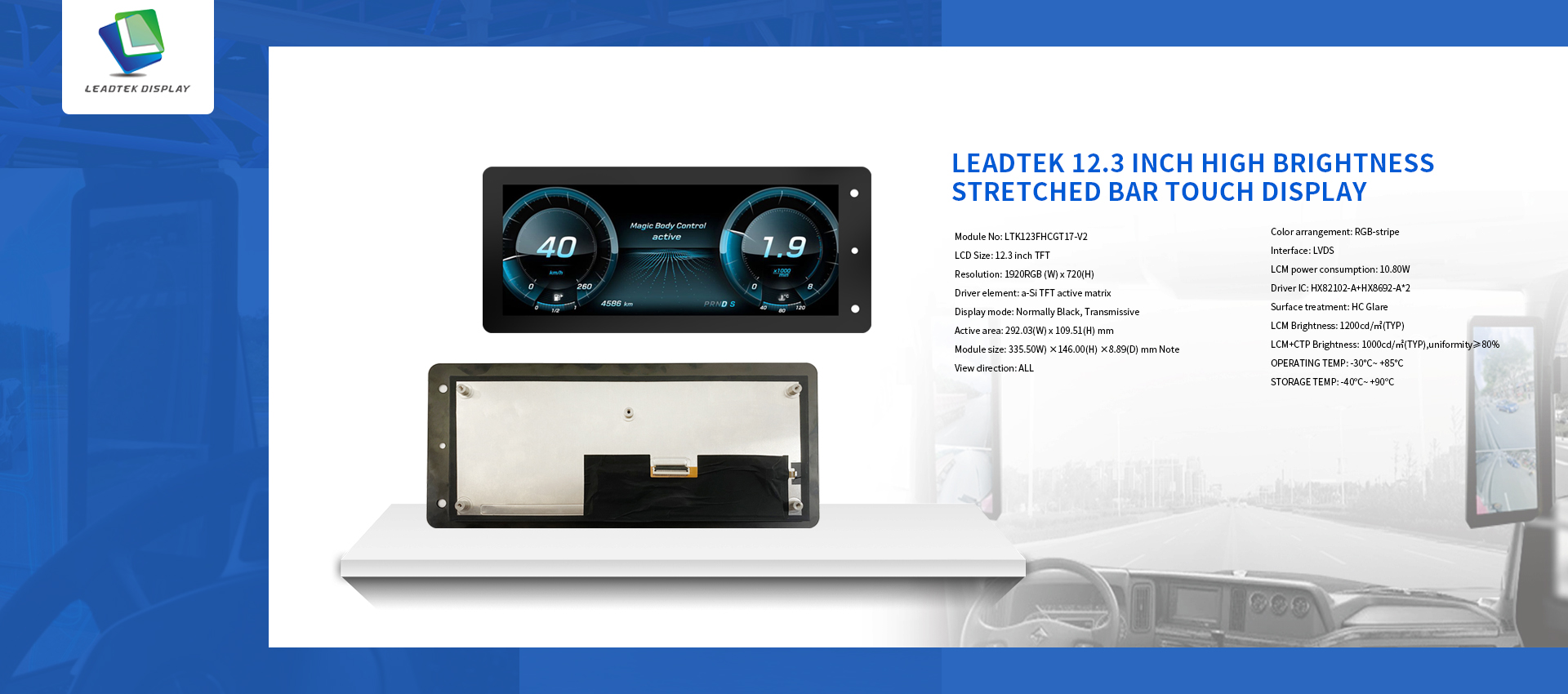

Leadtek 12.3 inch High Brightness Stretched Bar Touch Display

With a diagonal size of 12.3 inch, this touch display offers a large and immersive visual experience. The driver element used is the a-Si TFT active matrix,

ensuring high-quality performance and reliable operation. The display mode is normally black and transmissive, providing deep black levels and optimal

readability even in challenging lighting conditions. The surface is anti-glare (AG) coating, reducing reflections and ensuring optimal visibility from different

viewing angles. It utilizes a LVDS interface, enabling seamless connectivity and compatibility with a wide range of devices.

Features：

• Module No: LTK123FHCGT17-V2

• Size: 12.3 inch stretched bar touch display

• Driver element: a-Si TFT active matrix

• Resolution: 1920x720

• Interface: LVDS

• Display Mode: Normally Black / Transmissive

• Active area: 292.03(W) x 109.51(H) mm

• Module size: 335.50W) ×146.00(H) ×8.89(D) mm Note

• View direction: ALL

• LCM power consumption: 10.80W

• Driver IC: HX82102-A+HX8692-A*2

• Surface treatment: HC Glare

• LCM Brightness: 1200cd/㎡(TYP)

• LCM+CTP Brightness: 1000cd/㎡(TYP),uniformity≥80%

• OPERATING TEMP: -30°C~ +85°C

• STORAGE TEMP: -40°C~ +90°C

Application：

Smart Transportation
