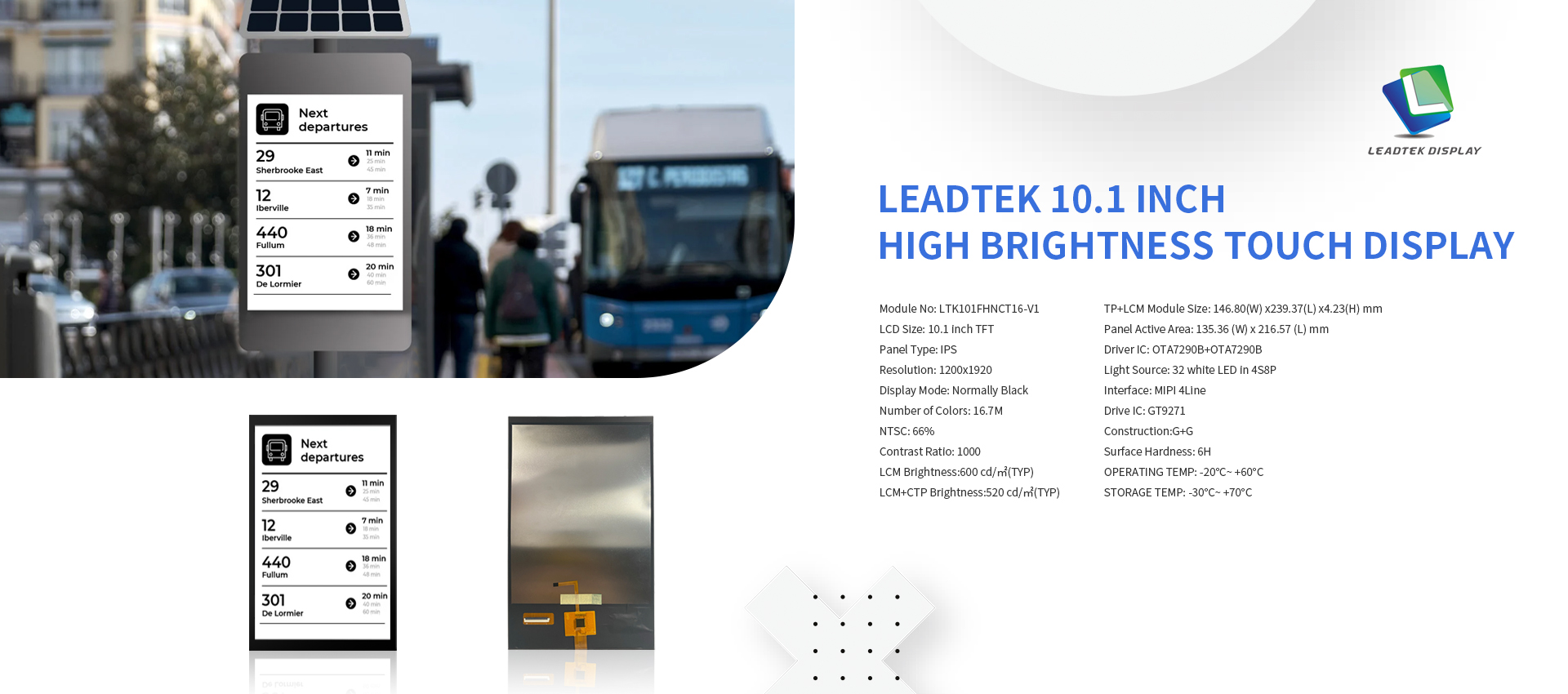

Leadtek 10.1 inch High Brightness Touch Display

Leadtek LTK101FHNCT16-V1 is a 520nits high brightness IPS touch display designed for smart transportation, LCD viewing

direction ALL. It is mounted with a G+G sensitive multiple touch PCAP, The material is RoHS compliant.

Features：

• Size: 10.1 inch portrait screen

• Resolution: 1200x1920

• Display Mode: Normally Black

• Interface: MIPI 4 line

• LCM Brightness:600 cd/㎡(TYP)

• LCM+CTP Brightness:520 cd/㎡(TYP)

• OPERATING TEMP: -20°C~ +60°C

• STORAGE TEMP: -30°C~ +70°C

• LCD Driver IC: OTA7290B+OTA7290B

Application：

Smart Transportation

BASIC PARAMETERS：

• Module No: LTK101FHNCT16-V1

• LCD Size: 10.1 inch TFT

• Panel Type: IPS

• Resolution: 1200x1920

• Display Mode: Normally Black

• Number of Colors: 16.7M

• NTSC: 66%

• Contrast Ratio: 1000

• LCM Brightness:600 cd/㎡(TYP)

• LCM+CTP Brightness:520 cd/㎡(TYP)

• TP+LCM Module Size: 146.80(W) x239.37(L) x4.23(H) mm

• Panel Active Area: 135.36 (W) x 216.57 (L) mm

• Driver IC: OTA7290B+OTA7290B

• Light Source: 32 white LED in 4S8P

• Interface: MIPI 4Line

• Drive IC: GT9271

• Construction:G+G

• Surface Hardness: 6H

• OPERATING TEMP: -20°C~ +60°C

• STORAGE TEMP: -30°C~ +70°C
