11 inch bar type 1280*120 TFT LCD with RGB Interface TN mode
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses
amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT
-LCD panel,driver Ics and a backlight unit. (W)
- Product Details
|
Model: |
LTK110A3001W |
|
Size: |
11'' |
|
Cell Type: |
TN |
|
Resolution: |
1280*120 |
|
Interface: |
RGB |
|

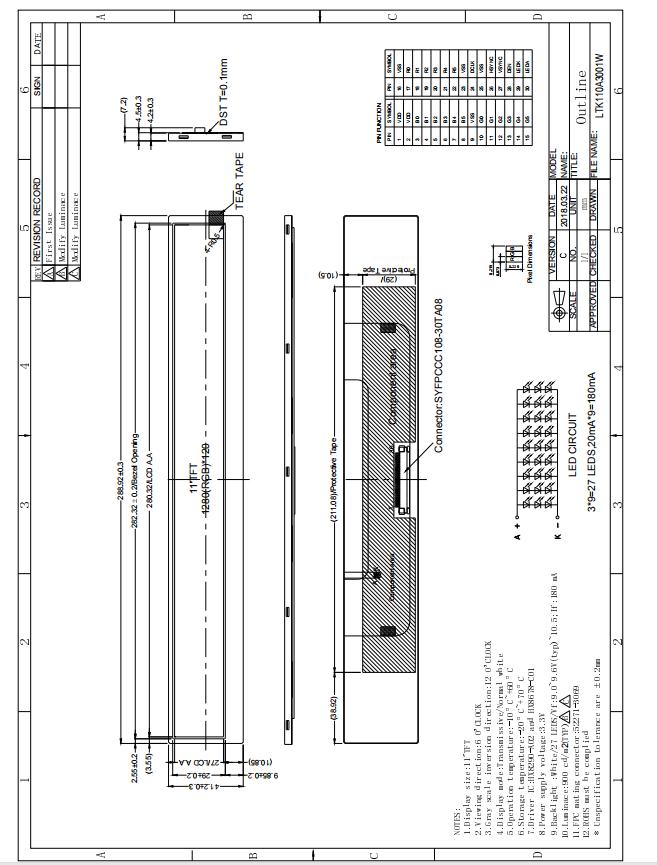

Outline Dimension: |
288.92*41.2*7.2(mm) |
|
Active Area: |
280.32*27.0(mm) |
