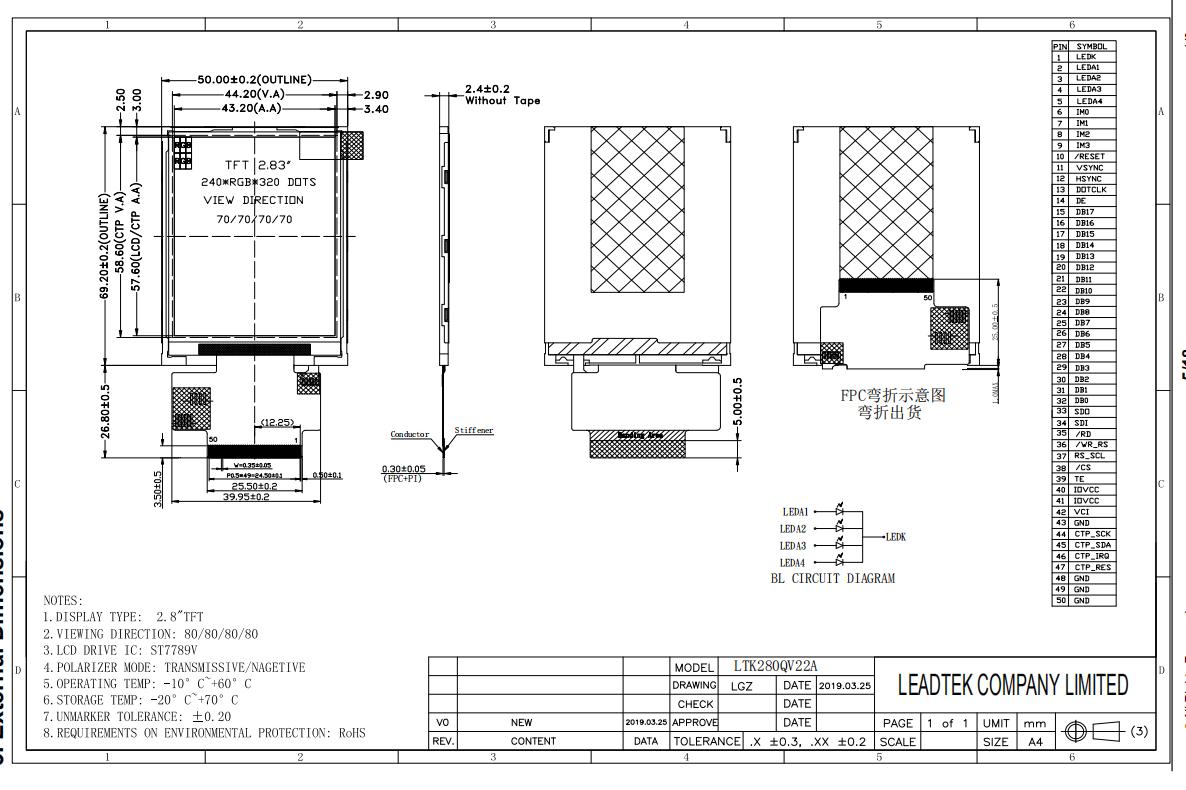

2.8 inch 240*320 resolution TFT LCD with SPI interface IPS display mode
This module color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses
amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.
This TFT LCD has a 2.8 inch diagonally measured active display area with (240 horizontal by 320 vertical
pixel) resolution.(W)
- Product Details
|
Model: |
LTK280QV22A |
|
Size: |
2.8'' |
|
Cell Type: |
IPS |
|
Resolution: |
240*320 |
|
Interface: |
SPI |
|
Outline Dimension: |
50.0*69.2*82.4(mm) |
|
Active Area: |
43.2*57.6(mm) |
