Exploring Common Bonding Methods for Touch Screens

Prev Update date: Jun 29,2023 Next

Touch screens have become ubiquitous in our daily lives, revolutionizing the way we interact with technology. Behind the smooth and responsive touch experience lies a complex manufacturing process that involves various bonding methods. In this article, we will delve into the most common bonding techniques used in touch screen production, shedding light on their features, benefits, and applications.



Optical Bonding:

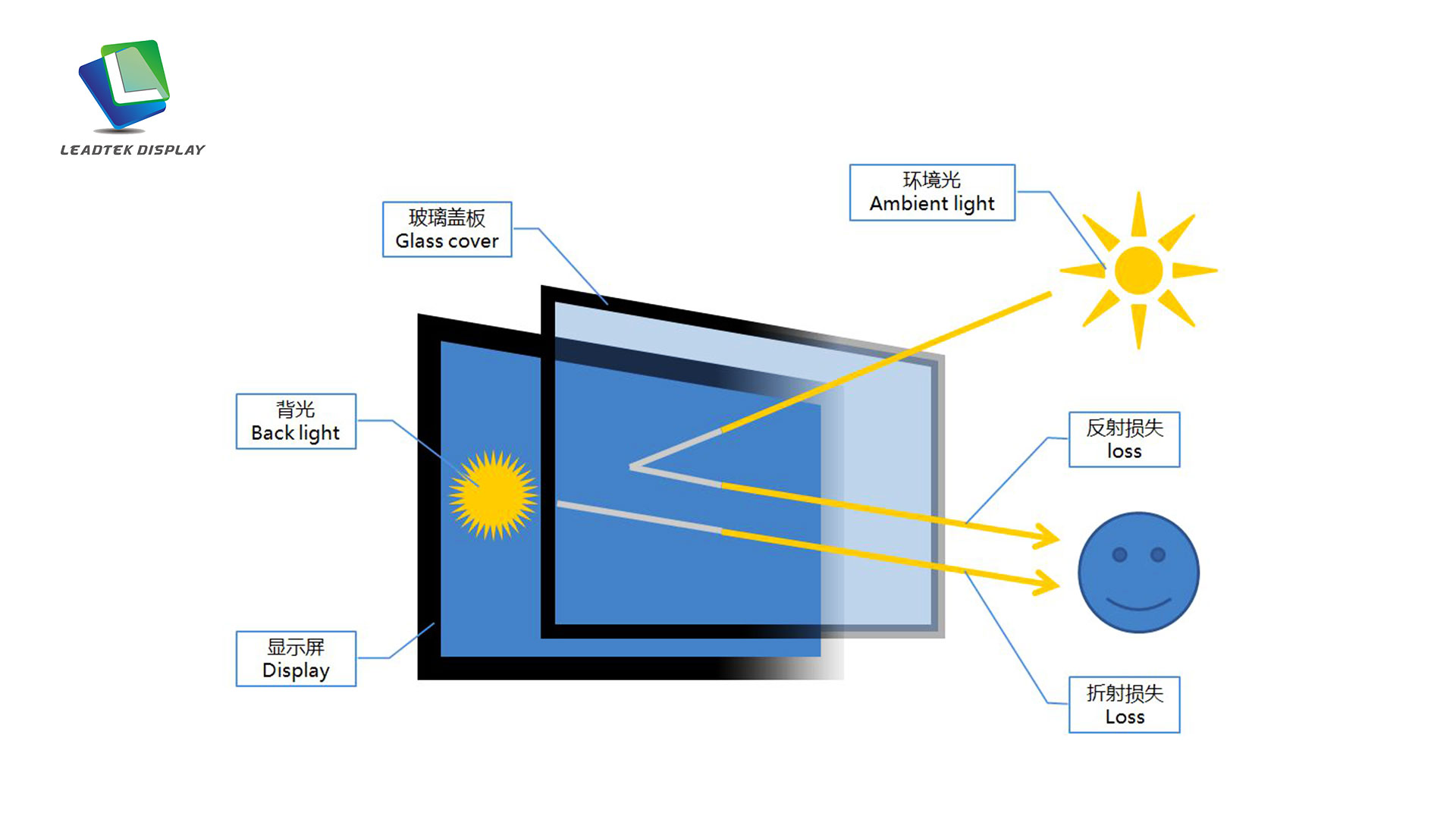

Optical bonding is a popular method that enhances display readability and durability by eliminating the air gap between the touch panel and the display. Here's how it works:

An optically clear adhesive (OCA) is applied between the touch panel and the display.

The assembly is subjected to a bonding process that eliminates air bubbles and ensures a secure bond.

Benefits: Optical bonding improves sunlight readability, reduces reflection and glare, enhances contrast, and strengthens the overall durability of the touch screen.

Applications: Optical bonding is commonly used in outdoor displays, automotive infotainment systems, marine navigation equipment, and industrial touch panels.


Liquid Optical Clear Adhesive (LOCA) Bonding:

Similar to optical bonding, LOCA bonding aims to eliminate the air gap between the touch panel and the display. The key difference lies in the adhesive used:

A liquid optical clear adhesive is applied between the touch panel and the display.

The adhesive is spread evenly using a lamination process, and then UV light is used to cure and solidify it.

Benefits: LOCA bonding offers improved optical properties, such as reduced reflectance and increased contrast. It also provides excellent touch sensitivity and impact resistance.

Applications: LOCA bonding is commonly employed in smartphones, tablets, and other consumer electronic devices where a slim profile and excellent visual quality are crucial.


Tape/Film Bonding:

Tape or film bonding is a method that utilizes an adhesive film to bond the touch panel and the display. Here's an overview:

A double-sided adhesive film is placed between the touch panel and the display.

The film is carefully aligned and bonded to the components, ensuring a secure and uniform attachment.

Benefits: Tape/film bonding provides a reliable bond, maintains excellent touch sensitivity, and offers ease of assembly and disassembly for repair or replacement.

Applications: Tape/film bonding is commonly found in industrial touch screens, medical devices, and certain consumer electronic products.


Air Gap Bonding:

In certain scenarios, an intentional air gap is maintained between the touch panel and the display. This approach offers specific advantages:

The touch panel and the display are assembled with a predetermined air gap in between.

The air gap can be adjusted to optimize optical properties, including touch sensitivity, contrast, and color reproduction.

Benefits: Air gap bonding allows customization of touch screen characteristics, making it suitable for specific applications that require precise control over optical properties.

Applications: Air gap bonding is commonly used in high-end displays, professional graphics tablets, and applications where optical performance is paramount.

The bonding method used in touch screen manufacturing significantly impacts the display's visual quality, durability, and performance. Optical bonding, LOCA bonding, tape/film bonding, and air gap bonding represent some of the most common techniques employed in the industry. Understanding the strengths and applications of each method is crucial for selecting the most appropriate bonding approach based on the specific requirements of your touch screen application.
