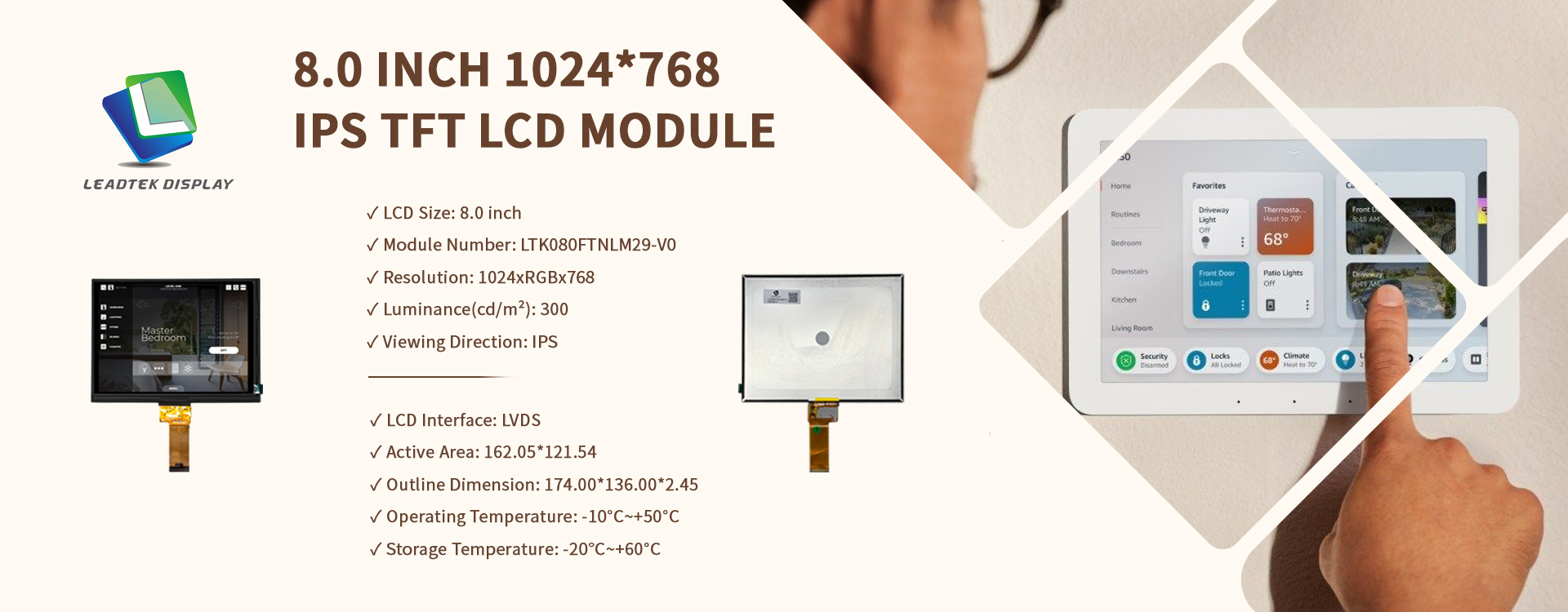

8.0 Inch IPS TFT LCD Display Module with 1024*768 Resolution

Welcome to Leadtek!

When it comes to smart home control panels or restaurant checkout terminals, the right display can make all the difference. So we are proudly to introduce our new product, the LTK080FTNLM29-V0, an 8.0-inch LCD module designed to bring clarity, comfort, and reliability to every touch.

Key Features：

· 4:3 Aspect Ratio – Comfortable Viewing
Designed with the optimal 4:3 aspect ratio, this display provides the most comfortable visual experience for users, reducing eye fatigue while delivering a natural, well-proportioned view.

· IPS Panel – Wide Viewing Angles and Vivid Colors
With IPS technology,It offers consistent image quality and rich color reproduction from all directions, ensuring your interface looks sharp and vibrant from any angle.

· High Resolution – Clear and Detailed Display
Featuring 1024×RGB×768 resolution, every icon, text, and graphic is rendered clearly, providing a premium visual experience for both control panels and POS systems.

· Reliable Performance in Various Conditions
Compact and durable, this module supports an LVDS interface, an active area of 162.05×121.54 mm, and overall dimensions of 174×136×2.45 mm.

Operating from -10°C to +50°C and storing from -20°C to +60°C, it delivers stable performance even in diverse environments.

Recommended Applications

——Smart home control panel

——Restaurant POS

——Self-Service Kiosks

Basic Parameters：

✅ LCD Size: 8.0 inch
✅ Module Number: LTK080FTNLM29-V0
✅ Resolution: 1024xRGBx768
✅ Luminance(cd/m²): 300
✅ Viewing Direction: IPS
✅ LCD Interface: LVDS
✅ Active Area(mm): 162.05*121.54
✅ Outline Dimension(mm): 174.00*136.00*2.45
✅ Operating Temperature: -10°C~+50°C
✅ Storage Temperature: -20°C~+60°C

If you’re looking for a display that combines visual comfort, wide viewing angles, and reliable performance, the LTK080FTNLM29-V0 is the perfect solution for your next smart home or commercial touch project.

Please feel free to reach out for more technical details, datasheets, or samples—we’re ready to support your innovation!

Product Showcase Video of Leadtek：
https://youtu.be/ZiIxXP_f1VE
