7.0inch Module 480(RGB)X1280 with 24-bit RGB interface TFT display
LTK070R501X is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)
that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 7.0 inch diagonally measured active display area with (800 horizontal by 480 vertical pixel) resolution.(E)
that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 7.0 inch diagonally measured active display area with (800 horizontal by 480 vertical pixel) resolution.(E)
- Product Details
Model Number |
LTK070R501X |
Size |
7.0'' |
Display model |
TN |
Resolution |
800(RGB)X480 |
Interface |
24-bit RGB |

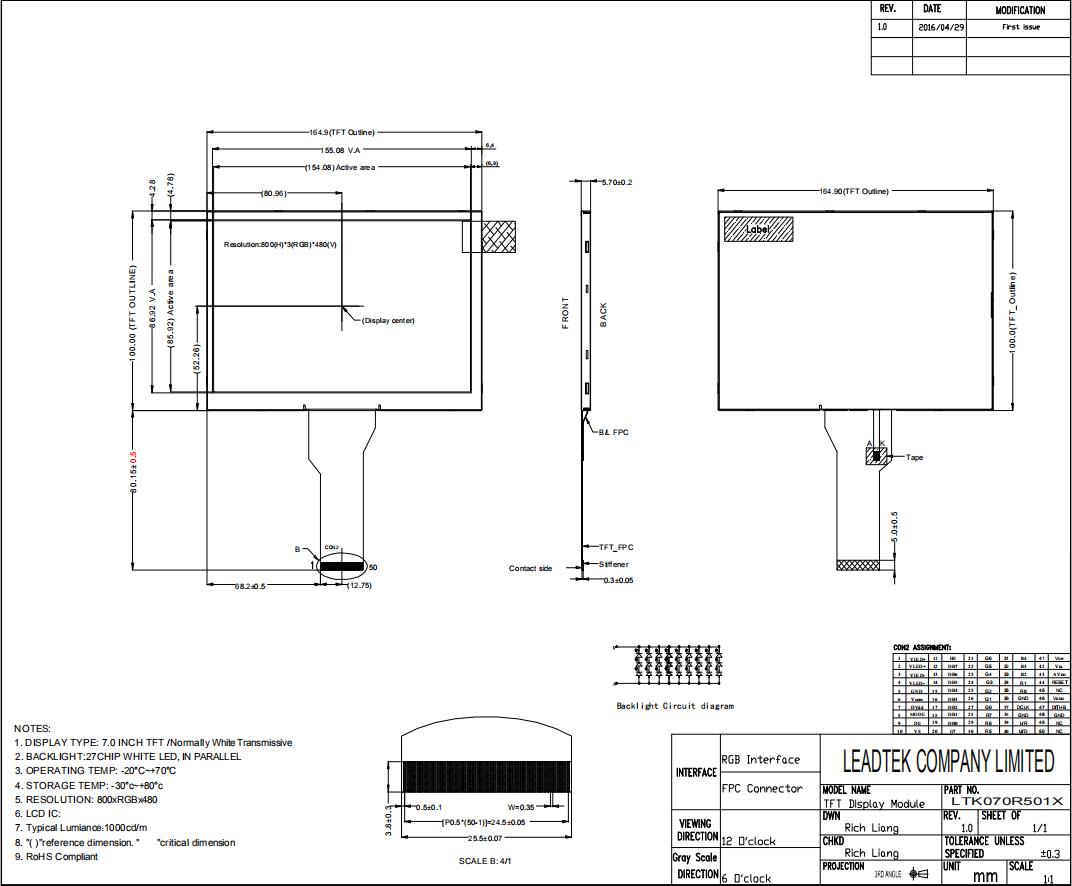

Outline dimension (mm) |
164.9*100.0*5.7 |
Active area (mm) |
154.08 x 85.92 |
Brightness |
1000 |
