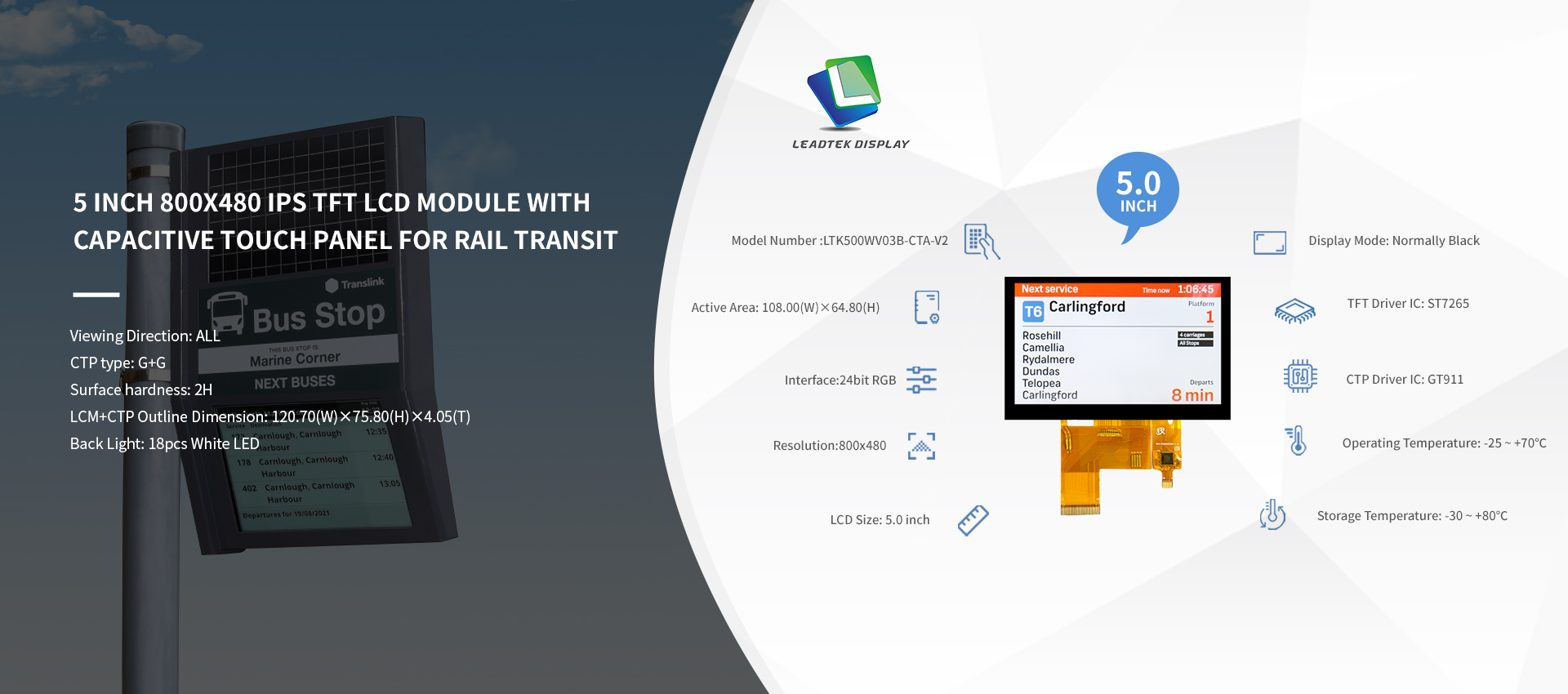

5 inch 800x480 IPS TFT LCD MODULE WITH CAPACITIVE TOUCH PANEL FOR RAIL TRANSIT
Today we are going to introduce our 5 inch 800x480 IPS TFT LCD MODULE WITH CAPACITIVE TOUCH PANEL FOR RAIL TRANSIT
P/N# LTK500WV03B-CTA-V2
Features：
- Wide Viewing Angle
- Fast Display Speed
- Good Display Effect
- Support customized FPC, Backlight, CTP, Surface Treatment and etc.
Application:
Rail Transit
General Information
| ITEM | STANDARD VALUES | UNITS |
| LCD type | 5.0’’TFT | -- |
| Dot arrangement | 800(RGB)×480 | dots |
| Color filter array | RGB vertical stripe | -- |
| Display mode | Normally Black | -- |
| Viewing Direction | ALL | -- |
| TFT Driver IC | ST7265 | -- |
| CTP type | G+G | -- |
| Surface hardness | 2H | -- |
| CTP Driver IC | GT911 | mm |
| LCM+CTP Outline Dimension | 120.70(W)×75.80(H)×4.05(T) | mm |
| Active area | 108.00(W)×64.80(H) | mm |
| Dot pitch | 0.08625(H) x 0.08625(V) | mm |
| Interface | 24bit RGB | -- |
| Operating temperature | -25 ~ +70 | ℃ |
| Storage temperature | -30 ~ +80 | ℃ |
| Back Light | 18pcs White LED | -- |
Introductory Video of LTK500WV03B-CTA-V2: https://youtu.be/5re5B2BtDoQ
If you are interested in this model, pls don't hesitate to contact us. The attachment is the specification of the product.
