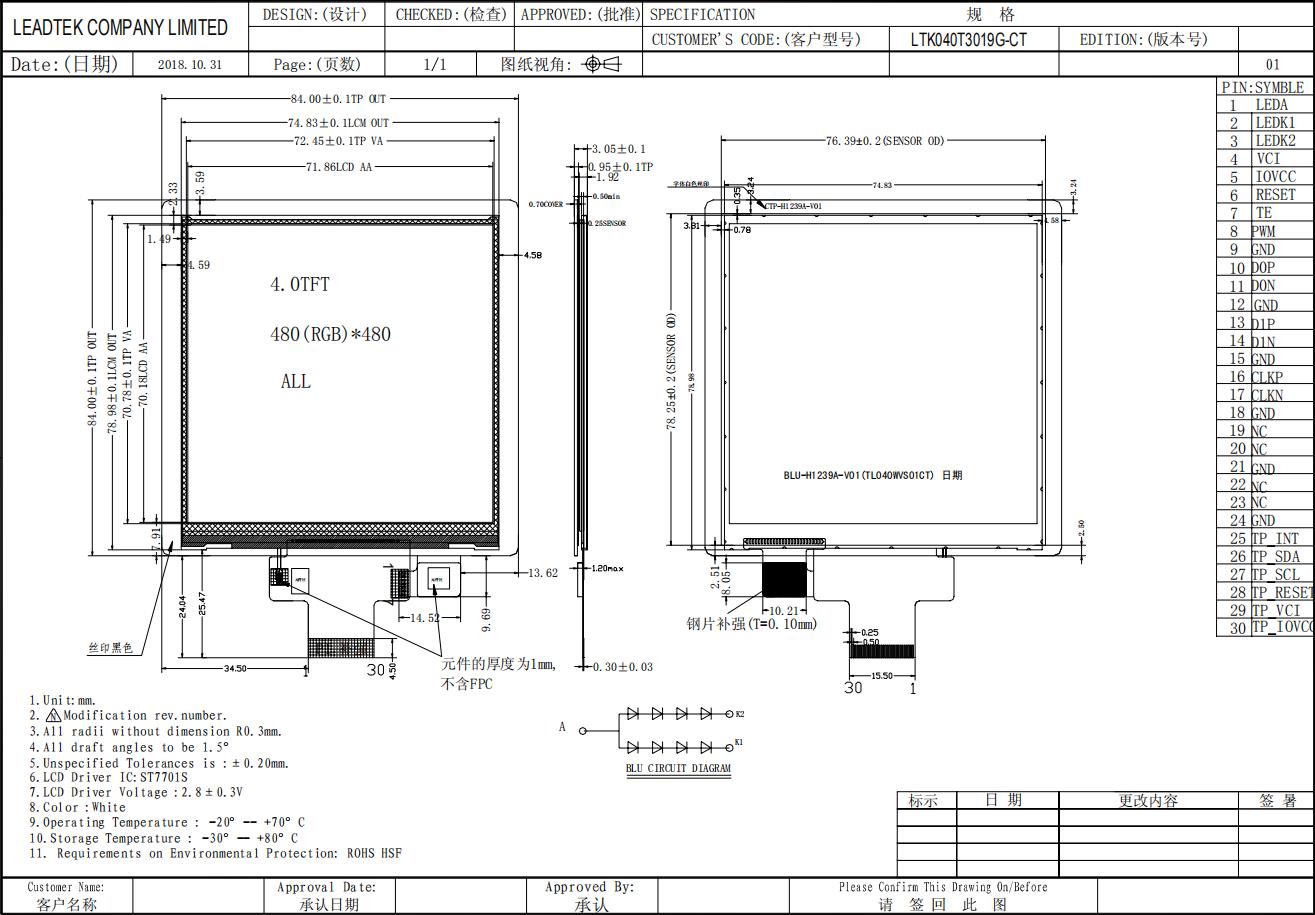

4.0inch Module 480(RGB)×480 with MIPI interface TFT display
1.Unit:mm.
2. Modification rev.number.
3.All radii without dimension R0.3mm
4.All draft angles to be 1.5°
5.Unspecified Tolerances is :±0.20mm
6.LCD Driver IC:ST7701S
7.LCD Driver Voltage :2.8±0.3V
8.Color :White
9.Operating Temperature : -20°-- +70°C
10.Storage Temperature : -30°-- +80°C
11. Requirements on Environmental Protection: ROHS HSF（E）
2. Modification rev.number.
3.All radii without dimension R0.3mm
4.All draft angles to be 1.5°
5.Unspecified Tolerances is :±0.20mm
6.LCD Driver IC:ST7701S
7.LCD Driver Voltage :2.8±0.3V
8.Color :White
9.Operating Temperature : -20°-- +70°C
10.Storage Temperature : -30°-- +80°C
11. Requirements on Environmental Protection: ROHS HSF（E）
- Product Details
|
Model Number |
LTK040T3019G-CT |
|
Size |
4'' |
|
Display model |
IPS |
|
Resolution |
480(RGB)×480 |
|
Interface |
MIPI |
|
Outline dimension (mm) |
84*84*3.05 |
|
Active area (mm) |
71.86*70.18 |
|
Brightness |
420 |
