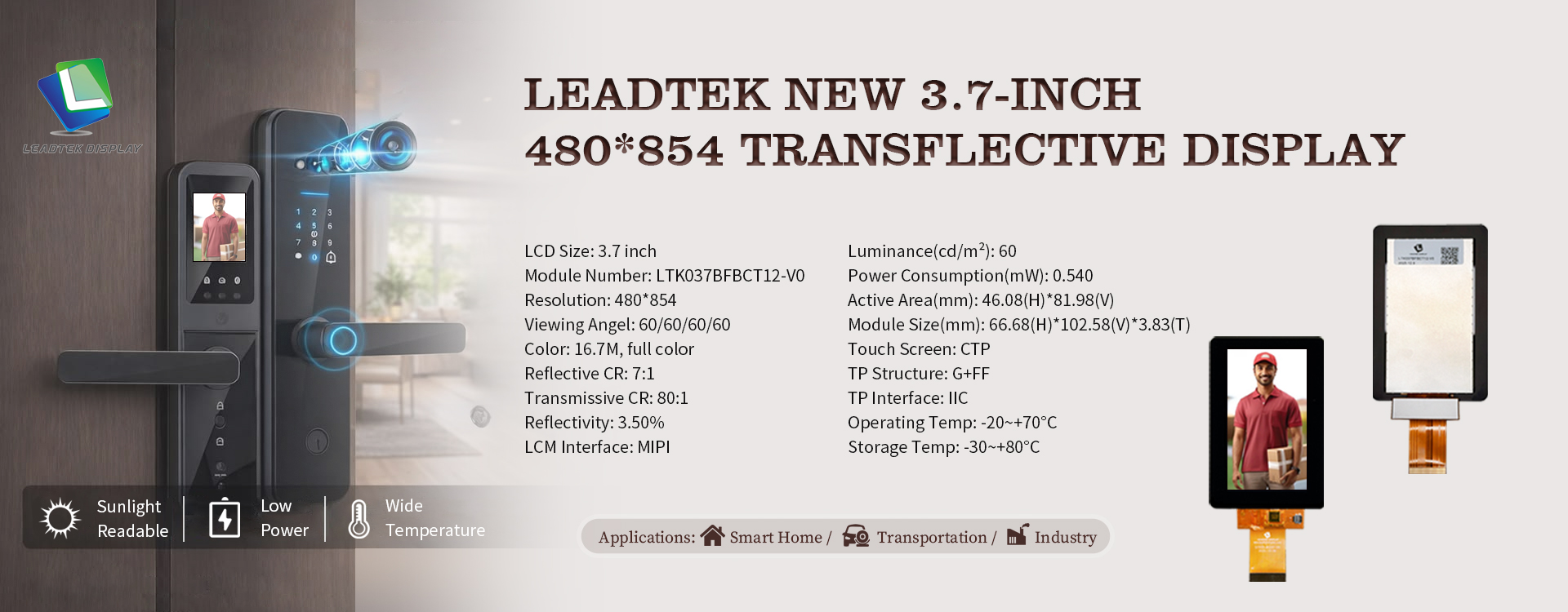

3.7 Inch 480*854 MIPI Full Color TFT LCD Transflective Display

Welcome to Leadtek Display！

In applications where lighting conditions constantly change, display readability can make all the difference. That’s why we’re excited to introduce our latest 3.7 inch Transflective TFT LCD Module (LTK037BFBCT12-V0)—engineered to deliver clear, reliable visuals in both indoor and high ambient light environments.

By combining transmissive and reflective display advantages, this transflective solution ensures excellent visibility under sunlight while maintaining low power consumption—making it ideal for always-on and energy-sensitive devices.

• • Excellent readability in any lighting condition

With a transflective structure and optimized reflectivity (3.5%), the display remains visible in both indoor and outdoor environments. Whether under direct sunlight or low-light conditions, users can clearly view content without compromise.

•  • Balanced contrast performance for versatile use

The module achieves a transmissive contrast ratio of 80:1, ensuring clear image rendering when the backlight is active, while still maintaining usable visibility in reflective mode.

• • Ultra-low power consumption for energy-sensitive devices

With power consumption as low as 0.540 mW, this module is ideal for applications requiring long standby time or continuous operation, such as smart home and monitoring systems.

• • Compact size with sharp visual output

Featuring a 3.7-inch display with 480×854 resolution, it offers crisp image quality within a space-efficient form factor—perfect for embedded systems with limited installation space.

• • Reliable performance in harsh environments

Supporting an operating temperature range of -20°C to +70°C, the module ensures stable operation in both indoor and demanding industrial or outdoor conditions.

• • Integrated capacitive touch for intuitive interaction

Equipped with a G+FF structured CTP and I²C interface, the module delivers smooth, responsive touch performance for modern user interfaces.

Basic Parameters：

✅LCD Size: 3.7 inch

✅Module Number: LTK037BFBCT12-V0

✅Resolution: 480*854
✅Viewing Angel: 60/60/60/60

✅Color: 16.7M, full color

✅Reflective CR: 7:1

✅Transmissive CR: 80:1

✅Reflectivity: 3.50%

✅LCM Interface: MIPI

✅Luminance(cd/m²): 60

✅Power Consumption(mW): 0.540

✅Active Area(mm): 46.08(H)*81.98(V)

✅Module Size(mm): 66.68(H)*102.58(V)*3.83(T)

✅Touch Screen: CTP

✅TP Structure: G+FF

✅TP Interface: IIC

✅Operating Temp: -20~+70°C

✅Storage Temp: -30~+80°C

Applications:

Smart Home(highly recommended)——Smart door locks | Home surveillance cameras

Transportation—— Automotive dashboards | Instrument clusters

Industrial Control——Industrial instruments | Control systems

If you’re looking to enhance display performance in challenging lighting environments, we’d be happy to support your project with tailored solutions.

Product Showcase Video：https://youtu.be/d5tpK1QMkuM
