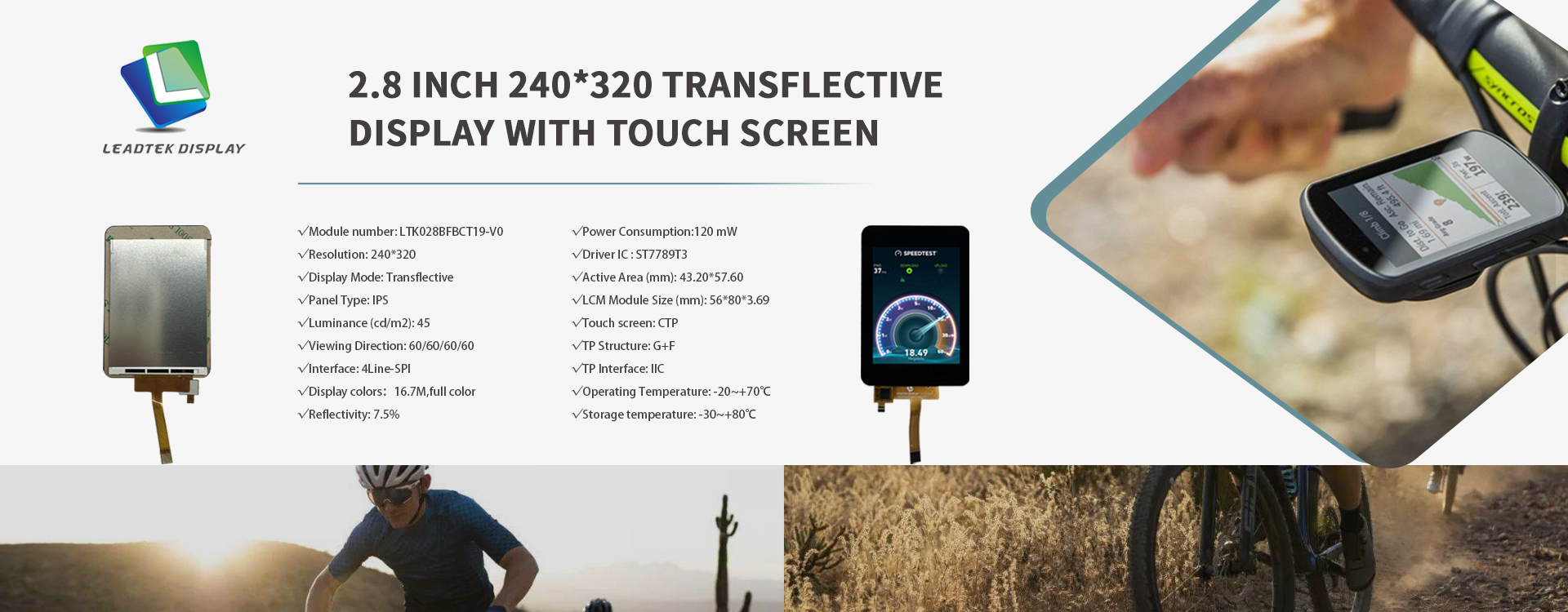

2.8 Inch SPI TFT LCD Transflective Display 240*320 with Touch

· Transflective Technology – Sunlight Readable

Featuring advanced Transflective display technology, this module ensures clear visibility even under direct sunlight—no more screen glare or washed-out visuals in outdoor conditions.

With a typical power usage of only 120mW, this display is built for energy efficiency, extending battery life in portable devices and reducing power burden on the system.

Enjoy 16.7M full-color display with 60° wide viewing angles in all directions (L/R/U/D). The IPS panel guarantees consistent image quality and accurate color reproduction from any perspective.

· Responsive Capacitive Touch

Equipped with a Capacitive Touch Panel (CTP) using a G+F structure and IIC interface, this display offers smooth and responsive interaction for modern touch-based applications.

Recommended Applications

——Cycling computers

——Outdoor handheld terminals

——GPS navigation devices

——Industrial portable systems

——Smart wearables

✅LCD Size:2.8 inch

✅Module number: LTK028BFBCT19-V0

✅Resolution:240*320

✅DisplayMode:Transflective

✅Panel Type: IPS

✅Luminance (cd/m²): 45

✅Viewing Direction:60/60/60/60

✅Interface: 4Line-SPI

✅Display colors：16.7M,full color

✅Reflectivity: 7.5%

✅Power Consumption:120 mW

✅Driver IC : ST7789T3

✅Active Area (mm): 43.20*57.60

✅LCM Module Size (mm): 56*80*3.69

✅Touch screen:CTP

✅TP Structure:G+F

✅TP Interface:IIC

✅Operating Temperature: -20~+70℃

✅Storage temperature: -30~+80℃
