13.3 inch TFT LCD with 1920*1080 resolution 500 nits brightness eDP interface IPS mode
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module,a driver circuit, and a back-light unit.The resolution of a 13.3” contains 1920*1080 dots(W).
- Product Details
|
Model Number |
LTK133A3010T |
|
Size |
13.3" |
|
Display model |
IPS |
|
Resolution |
1920*1080 |
|
Interface |
eDP |
|

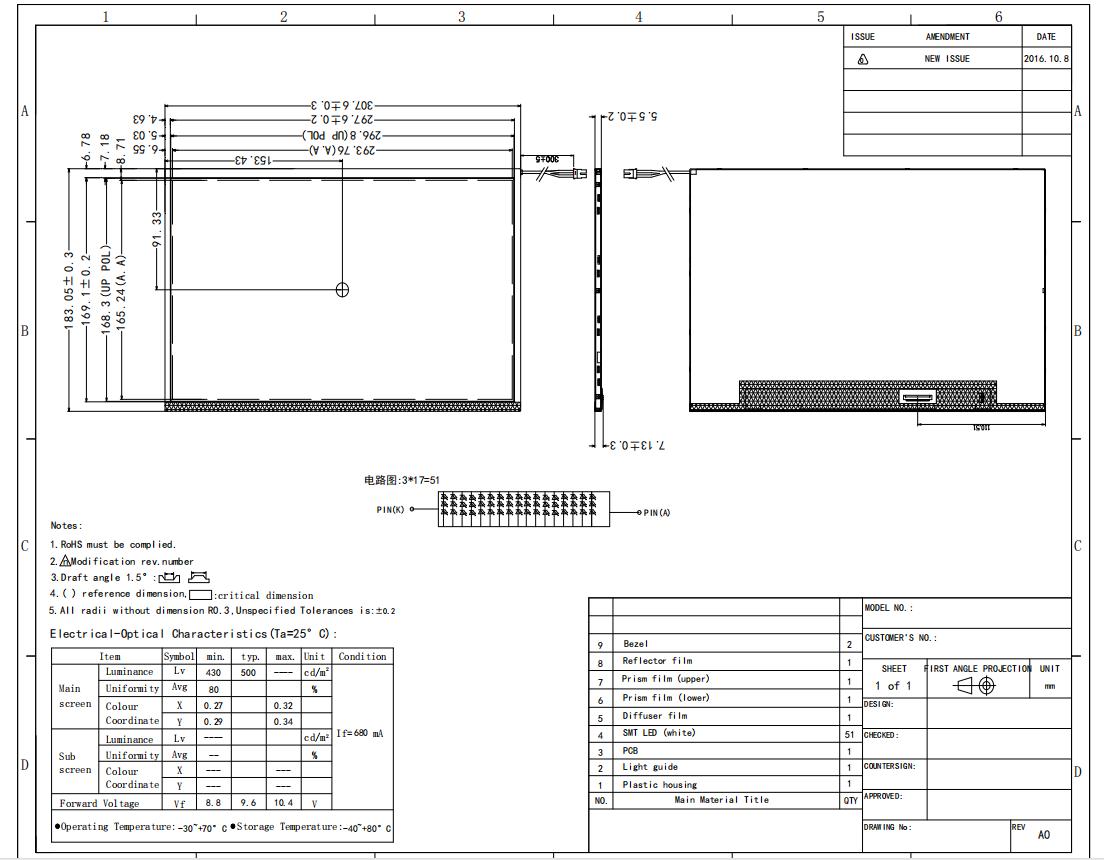

Outline dimension (mm) |
307.6(H)*183.05(V)*5.5(D)
|
|
Active area (mm) |
293.76(H) × 165.24(V)
|
|
Brightness |
500 |
