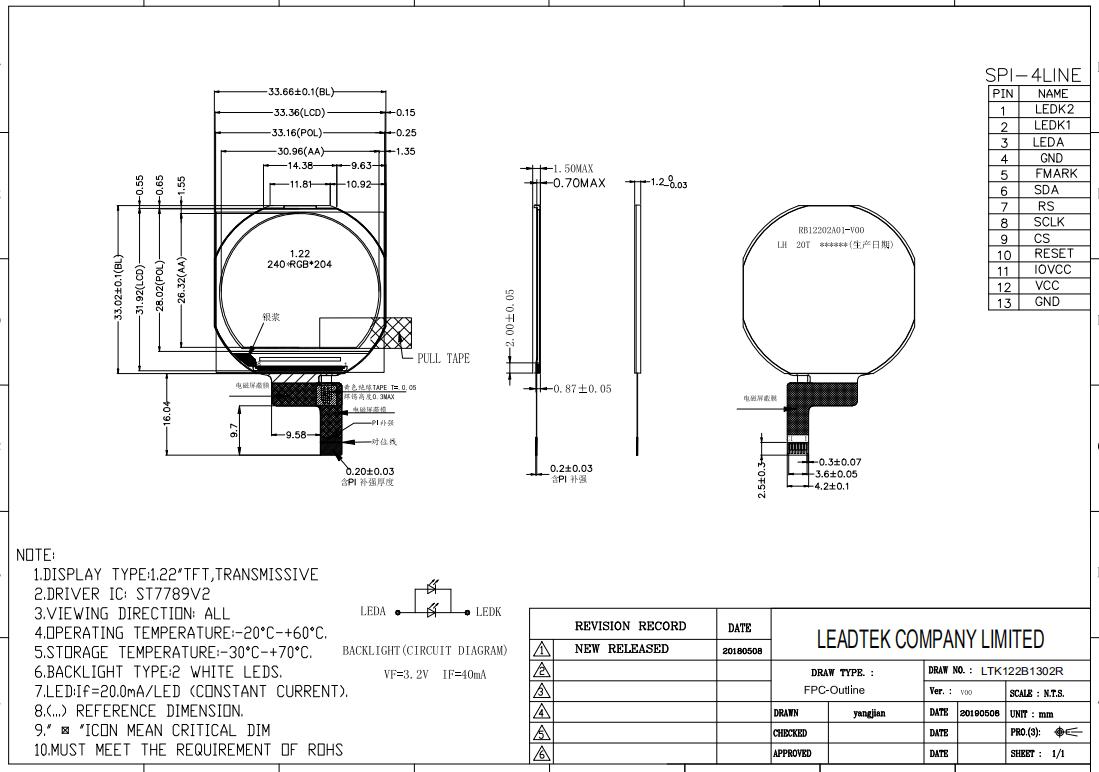

1.22 Inch TFT LCM 240*204 with SPI interface 65k colors LCM IPS Smart watch
This display module is a transmissive type color active matrix TFT(Thin Film Transistor)liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.22”contains 240(RGB)X204 dots and can display up to 65k colors.(W)
- Product Details
| Display Type: | 1.22''TFT, Normal Black |
| Module PN#: | LTK122B1302R |
| View direction: | ALL |
| Brightness: | 300 nits |
| Operating temperature: | -20℃〜+ 60℃ |
| Storage temperature: |
-30℃〜+ 70℃ |
