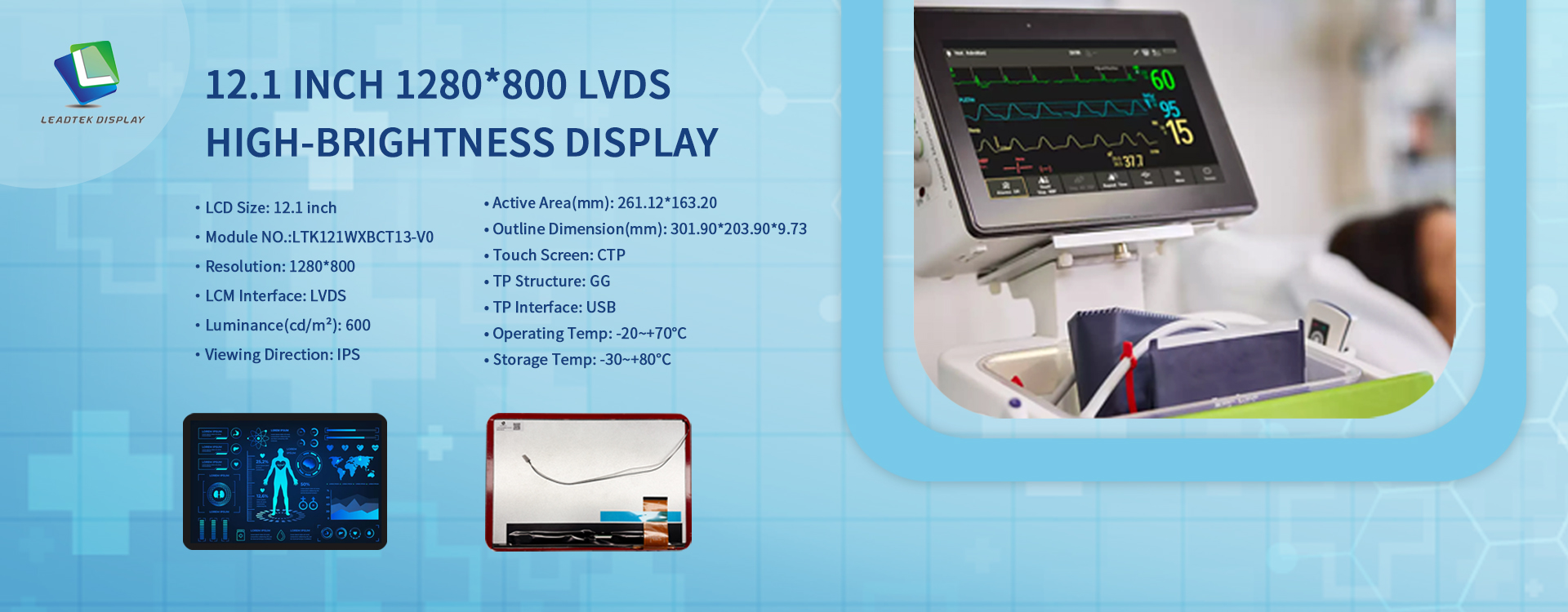

12.1 Inch 1280*800 High Brightness TFT Touch Display with LVDS Interface

Welcome to Leadtek Display!

We are pleased to introduce our 12.1-inch IPS touch display module,LTK121WXBCT13-V0，designed for applications where clarity, stability, and user interaction are essential, such as medical systems and smart home interfaces.

This 1280 × 800 TFT LCD module features high brightness up to 600 cd/m² and IPS technology, delivering clear visuals and consistent viewing from all angles. It is well-suited for displaying critical data in environments where accuracy and readability matter.

Equipped with an LVDS interface, the module ensures stable and efficient signal transmission. The integrated G+G capacitive touch panel with USB interface provides precise and responsive touch performance, supporting smooth and intuitive operation.

With a wide operating temperature range of -20°C to +70°C and a robust structure, this display is built for reliable performance in both professional medical environments and everyday smart home applications.

Key Features：

• 600 nits brightness for clear visibility
• IPS wide viewing angles for consistent image quality
• LVDS interface for stable data transmission
• Capacitive touch (GG) with USB interface
• Wide operating temperature: -20°C to +70°C

Applications: Smart Medical (Primary), Smart Home

Basic Parameters：

✅LCD Size:12.1 inch

✅Module Number:LTK121WXBCT13-V0

✅Resolution:1280*800

✅LCM Interface: LVDS

✅Luminance(cd/m²):600

✅Viewing Direction: IPS

✅Active Area(mm): 261.12*163.20

✅Outline Dimension(mm): 301.90*203.90*9.73

✅Touch Screen: CTP

✅TP Structure: GG

✅TP Interface:USB

✅Operating Temp:-20~+70°C

✅Storage Temp:-30~+80°C

Whether you are developing next-generation medical equipment or enhancing smart home interfaces, this 12.1” display module offers the performance and reliability you need.

If you're interested, feel free to reply to this email or contact us directly for more details or samples.
