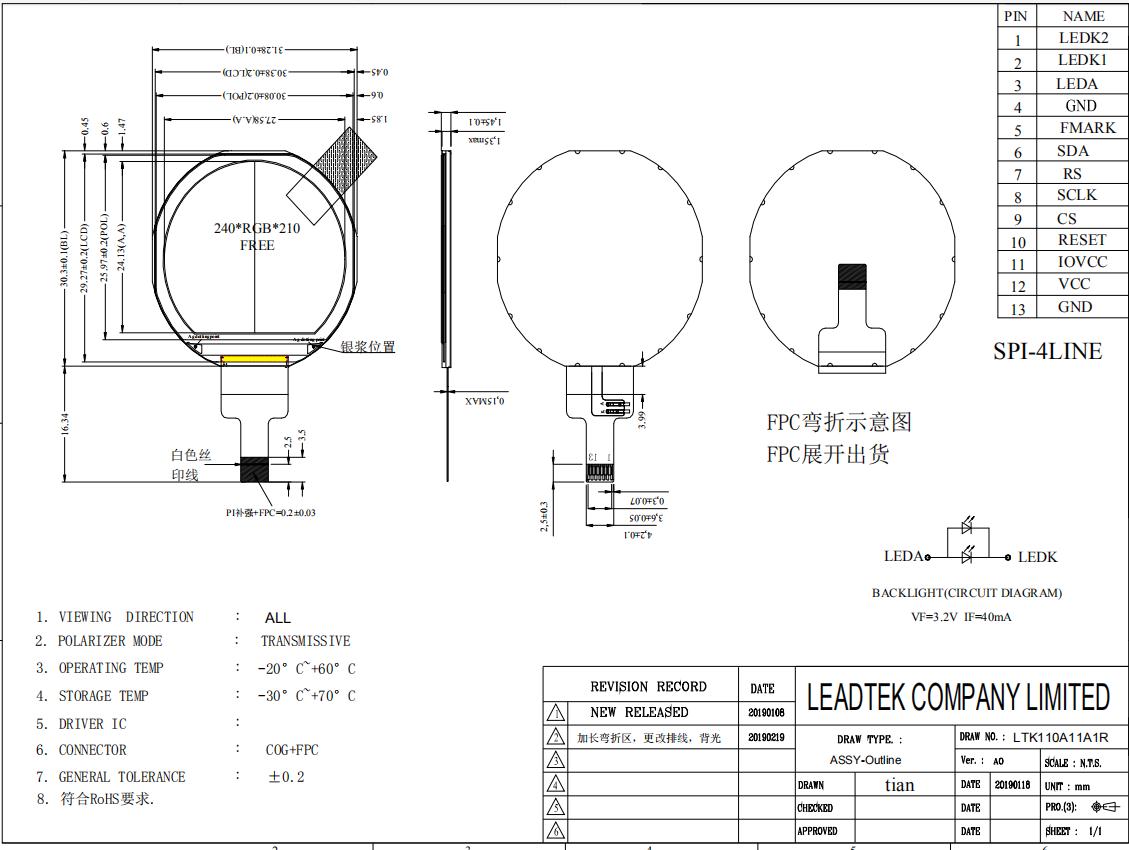

1.08inch TFT LCD Display 240*210 IPS Screen circle Display module
LTK110A11A1R color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses
amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.
This TFT LCD has a 1.08 inch diagonally measured active display area with (240 horizontal by 210 vertical
pixel) resolution.(W)
- Product Details
|
Model: |
LTK110A11A1R |
|
Size: |
1.08'' |
|
Cell Type: |
IPS |
|
Resolution: |
240*210 |
|
Interface: |
SPI |
|
Outline Dimension: |
16.12*29.76*1.52(mm) |
|
Active Area: |
13.82*23.76(mm) |
