10.4inch Module 800(H)×600(V) with LVDS interface TFT display
LTK104B2006B is a color active matrix TFT LCD module using amorphous silicon TFT‘s (Thin Film Transistors) as an active switching devices. This module has a 10.4 inch diagonally measured active area with SVGA resolutions (800 horizontal by 600 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this
module can display 16.7M colors.（E）
- Product Details
|
Model Number |
LTK104B2006B |
|
Size |
10.4" |
|
Display model |
TN |
|
Resolution |
800(H)×600(V) |
|
Interface |
LVDS |
|

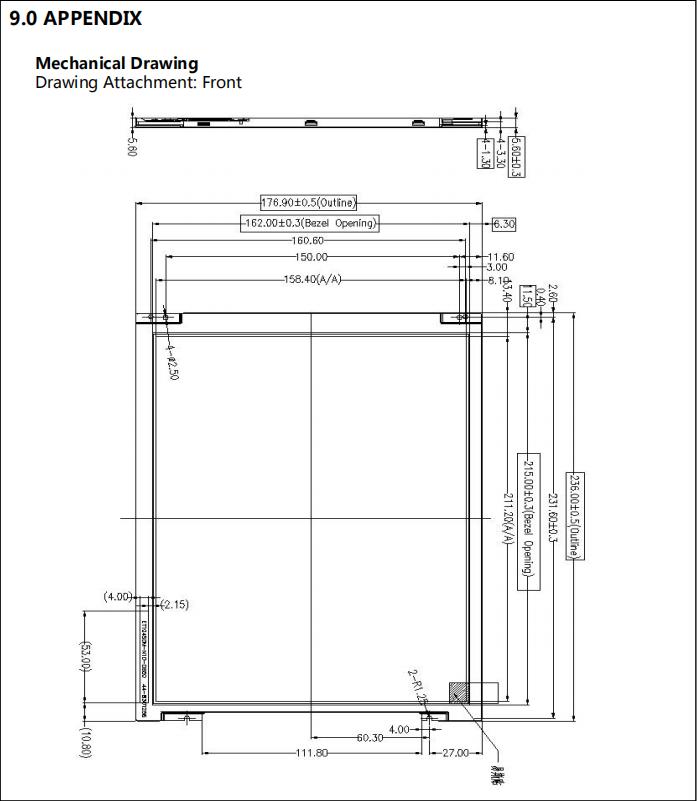

Outline dimension (mm) |
236(H)*176.9(V)*5.6(typ) |
|
Active area (mm) |
211.2(H)*158.4(V) |
|
Brightness |
350 |
