10.4inch Module 800(H)×600(V) with 6/ 8bits LVDS interface TFT display
LTK104M10N10 is a color active matrix TFT-LCD panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal white. This TFT-LCD has a 10.4 inch diagonally measured active area with SVGA resolutions (800 horizontal by 600 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 16.2M (RGB 8-Bits) or 262K colors (RGB 6-bits).（E）
- Product Details
|
Model Number |
LTK104M10N10 |
|
Size |
10.4" |
|
Display model |
TN |
|
Resolution |
800(H)×600(V) |
|
Interface |
6/ 8bits LVDS |
|

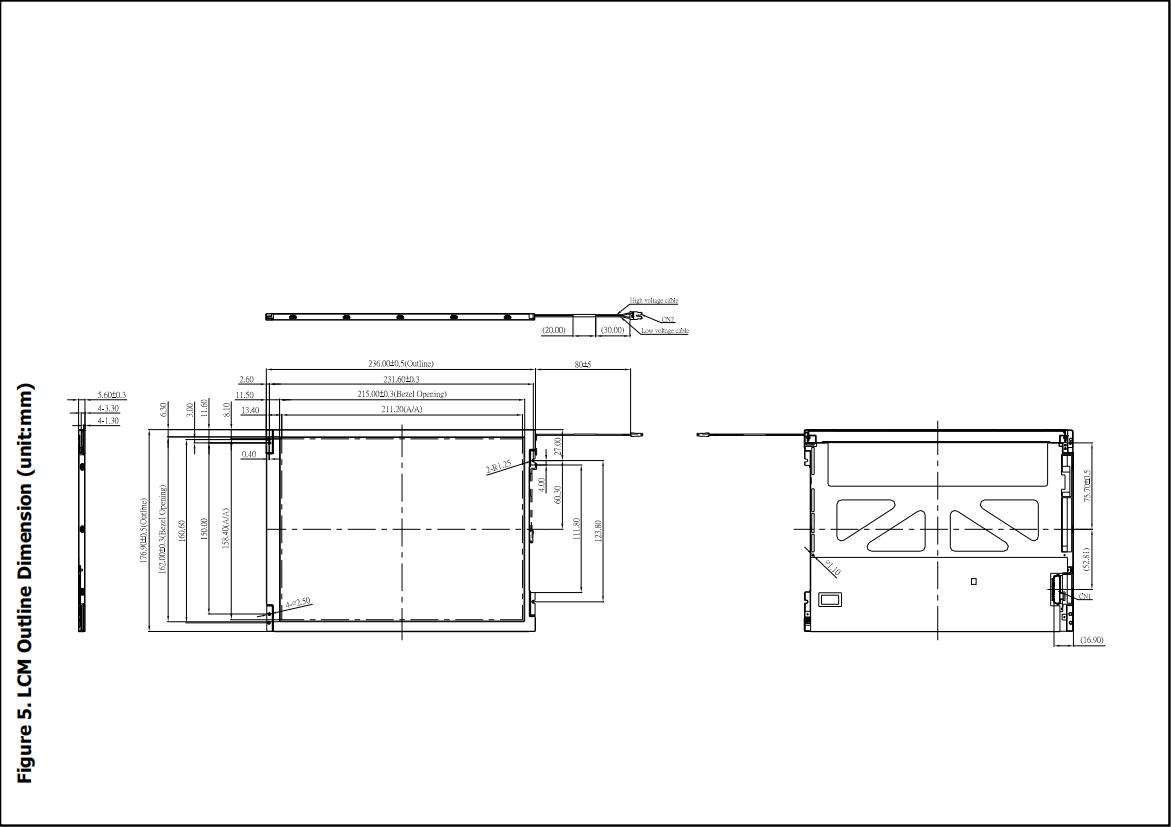

Outline dimension (mm) |
236(H)*176.9(V)*5.6(typ)(LCM) |
|
Active area (mm) |
211.2(H)*158.4(V) |
| Brightness |
350 |
