10.1 inch Module 800RGB (H) x 1280 (V) with MIPI interface TFT display
LTK101B4019W Display mode is a color active matrix thin film transistor (TFT) liquid crystal
display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 10.1(16:10) inch diagonally measured active display area with (800 horizontal by 1280 vertical pixel) resolution.（E）
- Product Details
|
Model Number |
LTK101B4019W |
|
Size |
10.1'' |
|
Display model |
IPS |
|
Resolution |
800RGB (H) x 1280 (V) |
|
Interface |
MIPI |
|

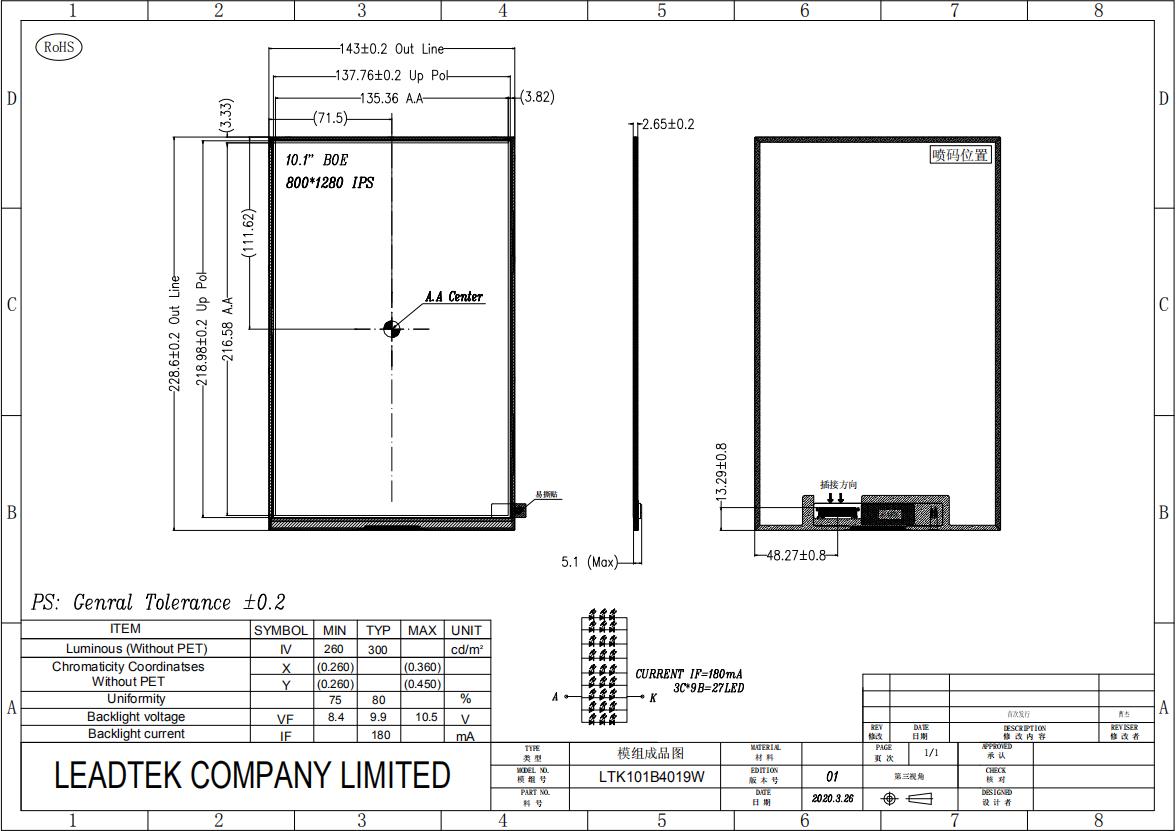

Outline dimension (mm) |
143(H) x 228.60(V) x2.65(D) |
|
Active area (mm) |
135.36(H) x 216.58 (V) |
|
Brightness |
300 |
