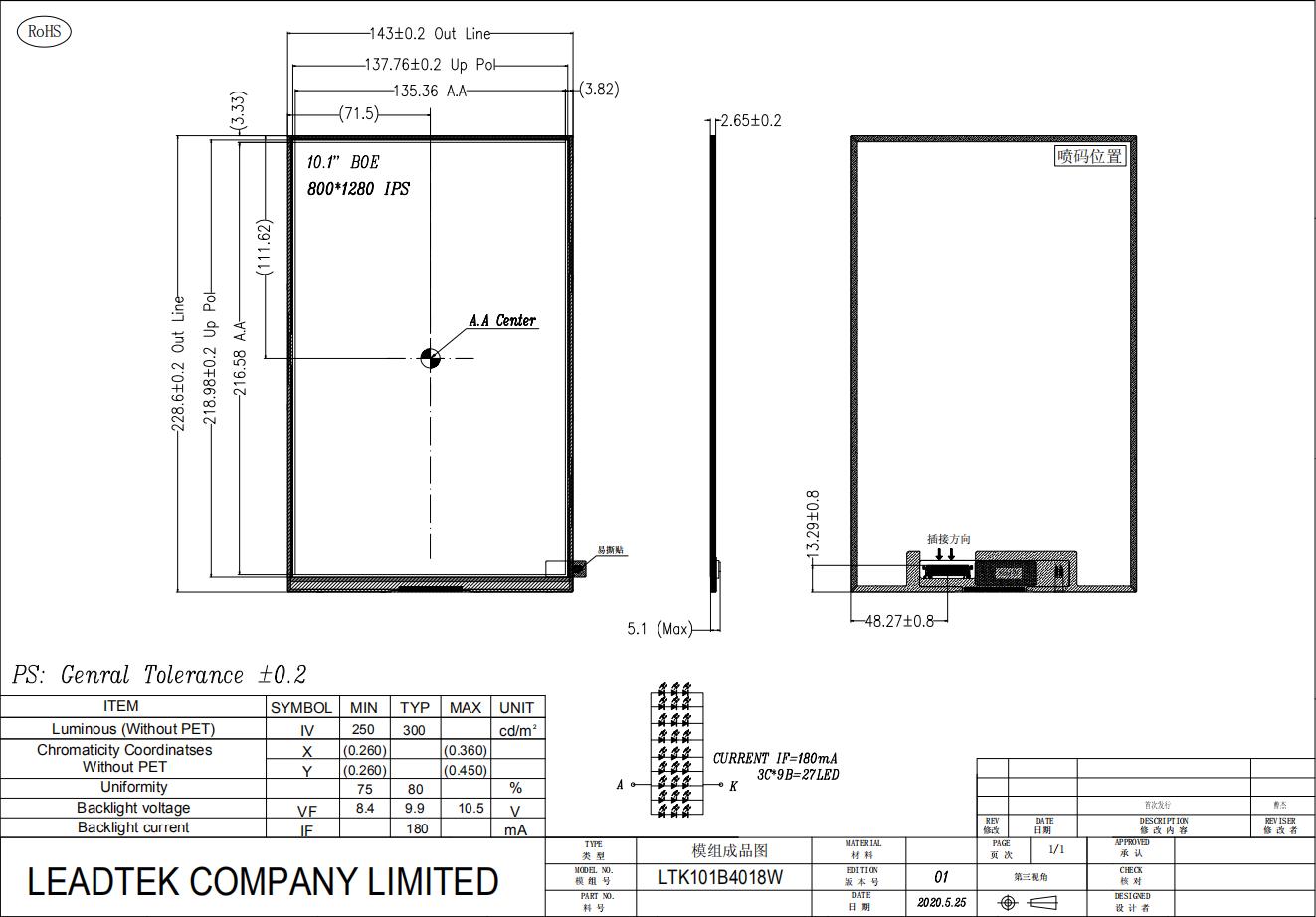

10.1 inch 800*1280 IPS with MIPI interface display
LTK101B4018W Display mode is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 10.1(16:10) inch diagonally measured active display area with (800 horizontal by 1280 vertical pixel) resolution(E)
- Product Details
PN
|
LTK101B4018W
|
Size |
10.1 inch
|
Resolution |
800RGB (H) x 1280 (V)
|
Display mode |
IPS
|
Module Size |
143(H) x 228.60(V) x2.65(D)
|
Active area |
135.36(H) x 216.58 (V)
|
Interface |
MIPI
|
