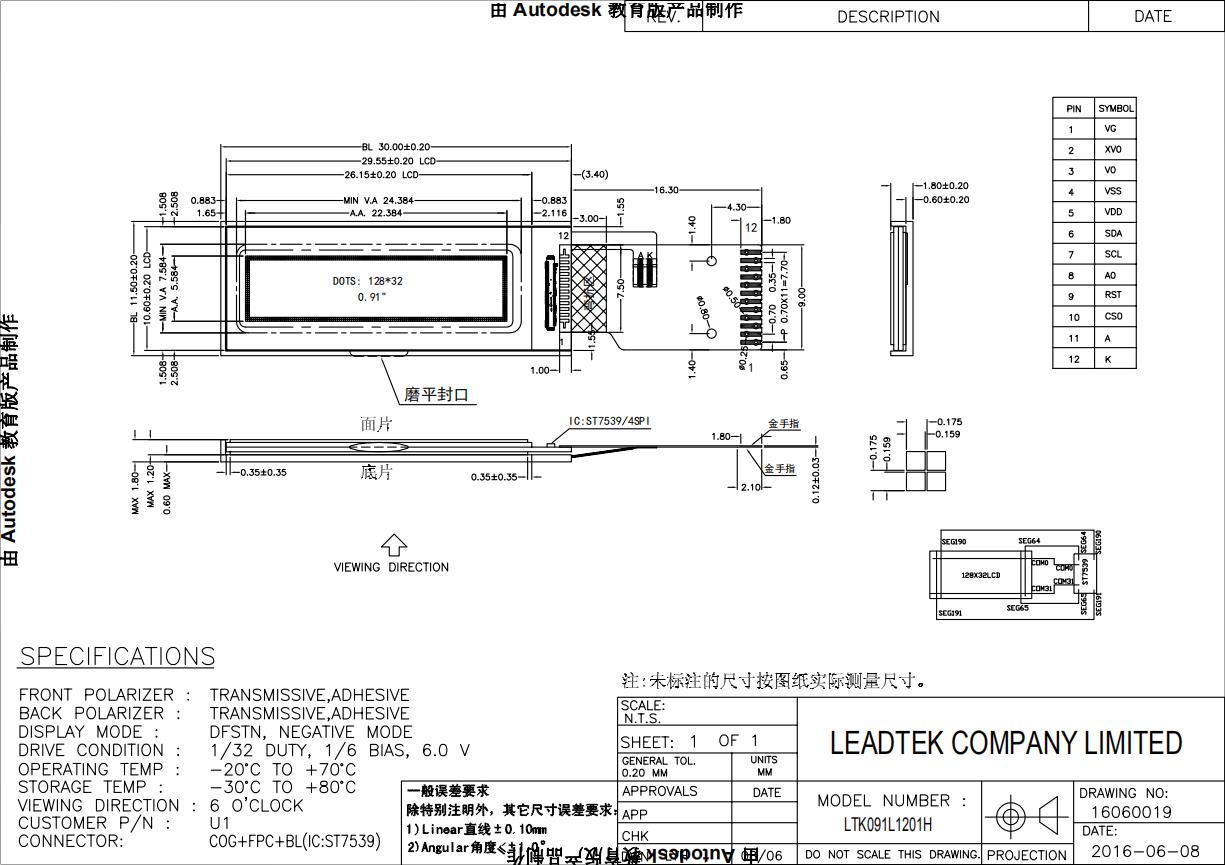

0.91inch Module 128*32 with 4Line SPI interface TFT display
BACK POLARIZER : TRANSMISSIVE, ADHESIVE
DISPLAY MODE : DFSTN, NEGATIVE MODE
DRIVE CONDITION : 1/32 DUTY, 1/6 BIAS, 6.0V
OPERATING TEMP: -20` TO +70
STORAGE TEMP: -30 TO +80
VIEWING DIRECTION : 6 0'CLOCK
CUSTOMER P/N : U1
DISPLAY MODE : DFSTN, NEGATIVE MODE
DRIVE CONDITION : 1/32 DUTY, 1/6 BIAS, 6.0V
OPERATING TEMP: -20` TO +70
STORAGE TEMP: -30 TO +80
VIEWING DIRECTION : 6 0'CLOCK
CUSTOMER P/N : U1
CONNECTOR: COG+FPC+BL(IC: ST7539)
(E)
- Product Details
|
Model Number |
LTK091L1201H |
|
Size |
0.91 |
|
Display model |
TN |
|
Resolution |
128*32 |
|
Interface |
4Line SPI |
|
Outline dimension (mm) |
29.55*10.6*1.8 |
|
Active area (mm) |
22.384*5.584 |
| Brightness | / |
