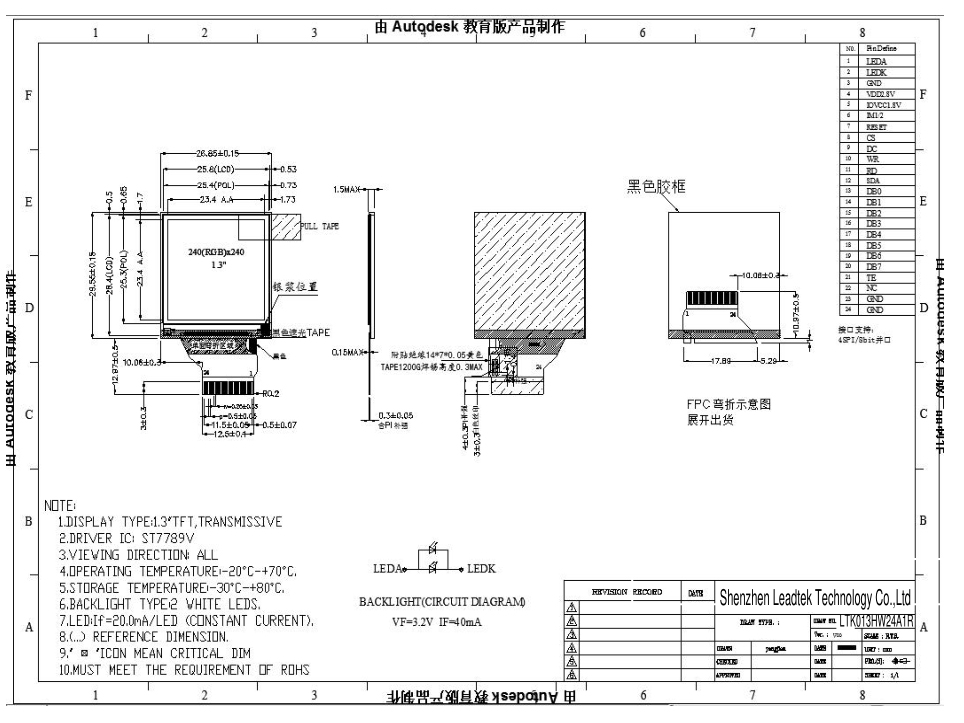

LCD Module 1.3inch TFT LCD Display
1. DISPLAY TYPE:1.3"TFT,TRANSMISSIVE
2. DRIVER IC: ST7789V
3. VIEWING DIRECTION: All
4. OPERATING TEMPERATURE:-20°C-+70°C.
5. STORAGE TEMPERATURE:-30°C-+80°C.
6. BACKLIGHT TYPE: 2 WHITE LEDS.
7. LED:If=20.0mA/LED (CONSTANT CURRENT).
8. MUST MEET THE REQUIREMENT OF ROHS
2. DRIVER IC: ST7789V
3. VIEWING DIRECTION: All
4. OPERATING TEMPERATURE:-20°C-+70°C.
5. STORAGE TEMPERATURE:-30°C-+80°C.
6. BACKLIGHT TYPE: 2 WHITE LEDS.
7. LED:If=20.0mA/LED (CONSTANT CURRENT).
8. MUST MEET THE REQUIREMENT OF ROHS
- Product Details
| Model No: |
LTK013HW24A1R |
| Size: | 1.3'' |
| Cell: | / |
| Cell Type: | IPS |
| Resolution: |
240(RGB)X204 |
| Interface: |
SPI 4line or MCU |
| Outline Dimension: |
26.85(H)X29.55(V)X1.5mm |
| Active Area: |
23.4(H)X23.4(V) mm |
| Brightness: | 350 |
| With/Without TP: | Without TP |
