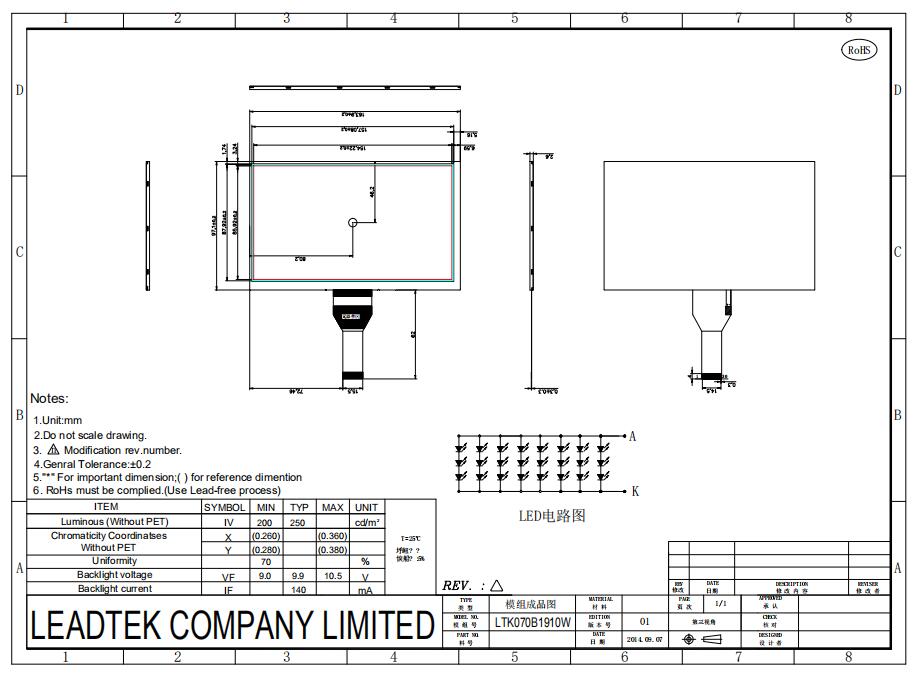

IPS panel TFT 1024x600 7.0inch display with MIPI interface
LTK070B1910W is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with (1024 horizontal by600 vertical pixe l) resolution. (C)
- Product Details
| Display Type: | 7.0''TFT, Normal Black |
| Module PN#: | LTK070B1910W |
| View direction: | 80/80/80/80 |
| Brightness: | 250 nits |
| Operating temperature: | -10℃ ~ +60℃ |
| Storage temperature: |
-20℃ ~ +70℃ |
