5.0 Inch TFT LCD with 720*1280 Resolution IPS mode
This display module is a transmissive type color active matrix TFT(Thin Film Transistor)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 5.0” contains 720*1280.(W)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 5.0” contains 720*1280.(W)
- Product Details
|
Model Number |
LTK500A30A1R |
|
Size |
5.0" |
|
Resolution |
720*1280 |
|
Interface |
/ |
|

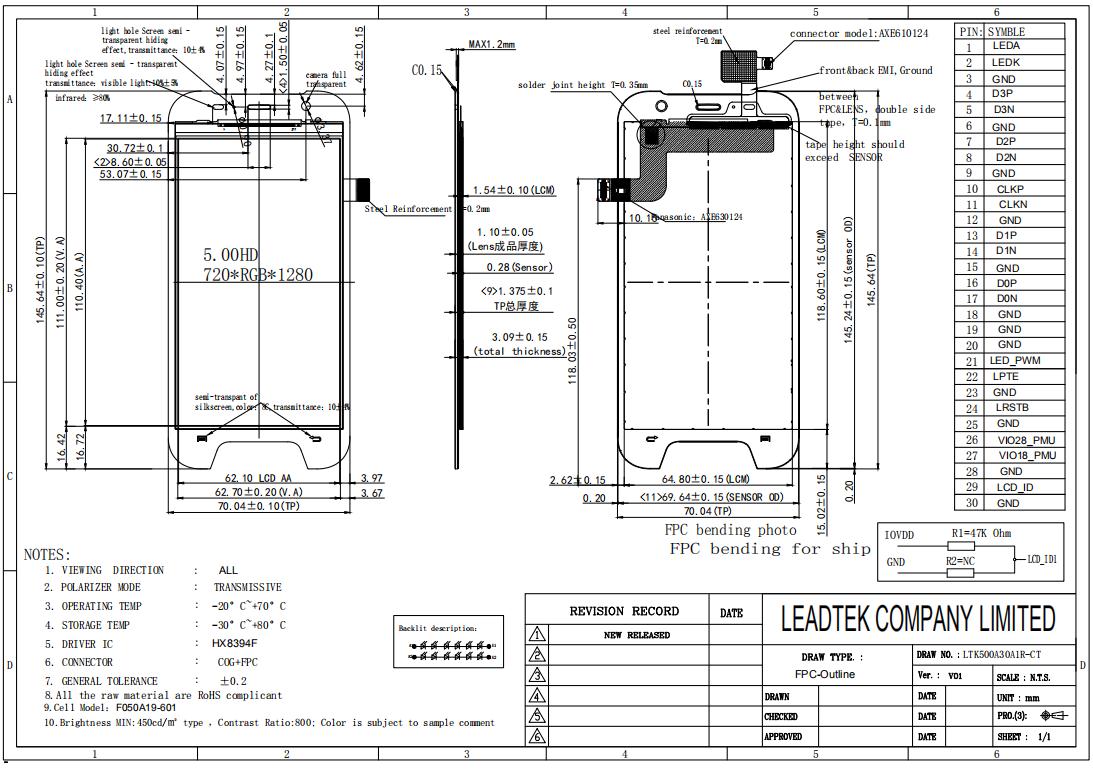

Outline dimension (mm) |
145.64*70.04*3.09 |
|
Active area (mm) |
110.4*62.10 |
|
Brightness(nits) |
450 |
|
Display model |
IPS |
