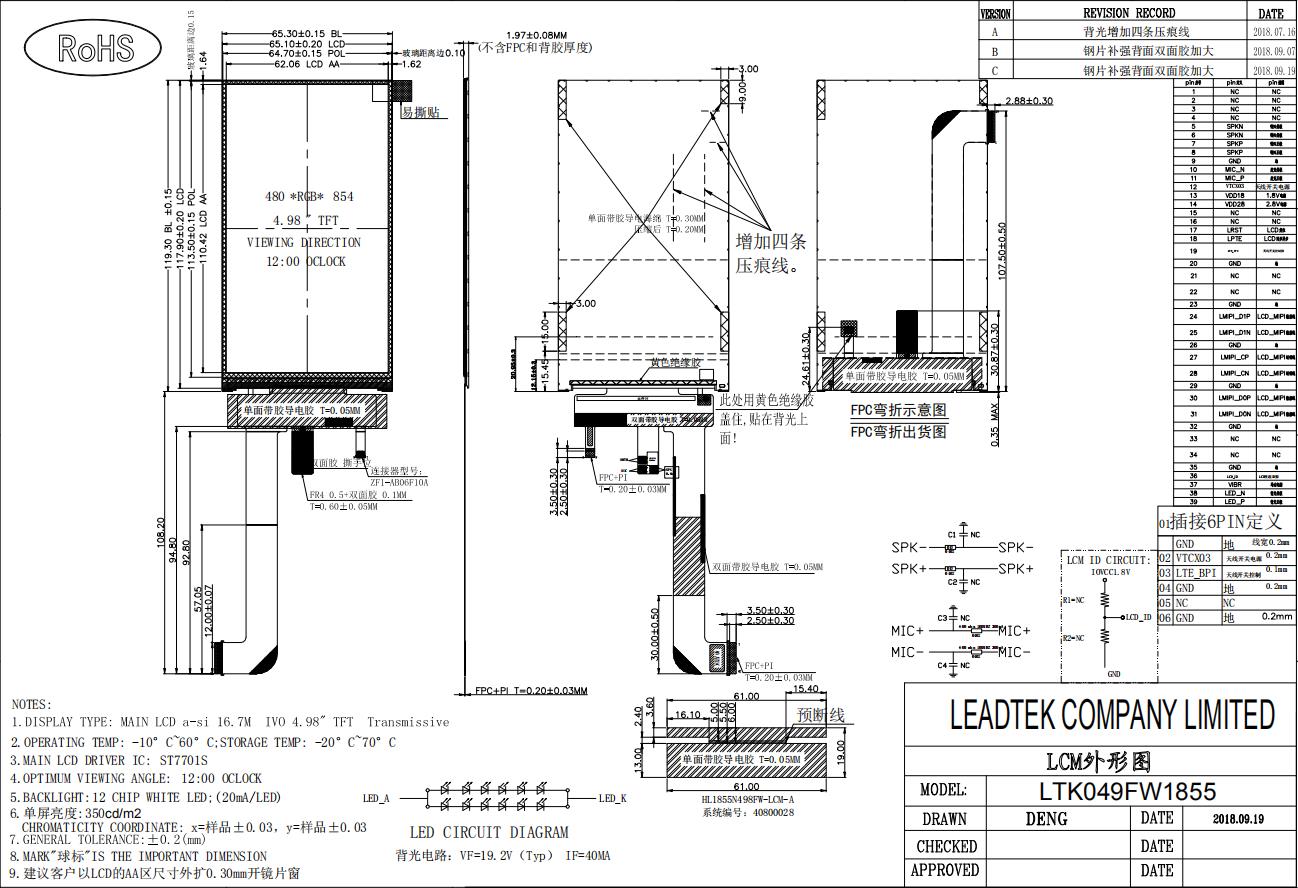

5.0 inch TFT LCD with 480*854 resolution eDP interface TN mode
The specification is a 4.98” transmissive type color active matrix liquid crystal display (LCD)which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel,driver IC and a backlight unit. the product has been designed by Jingtai, and manufactured by Jingtai under SSthe argument of customer, The a-Si TFT-LCD will be applied to a high transmittance operating in the Normally black mode a-Si TFT-LCD product.(W)
- Product Details
|
Model Number |
LTK049FW1855 |
|
Size |
4.98'' |
|
Display model |
TN |
|
Resolution |
480X854 |
|
Interface |
eDP/MIPI |
|
Outline dimension (mm) |
65.10X117.90X1.97 |
|
Active area (mm) |
62.06X110.42 |
|
Brightness |
350 |
