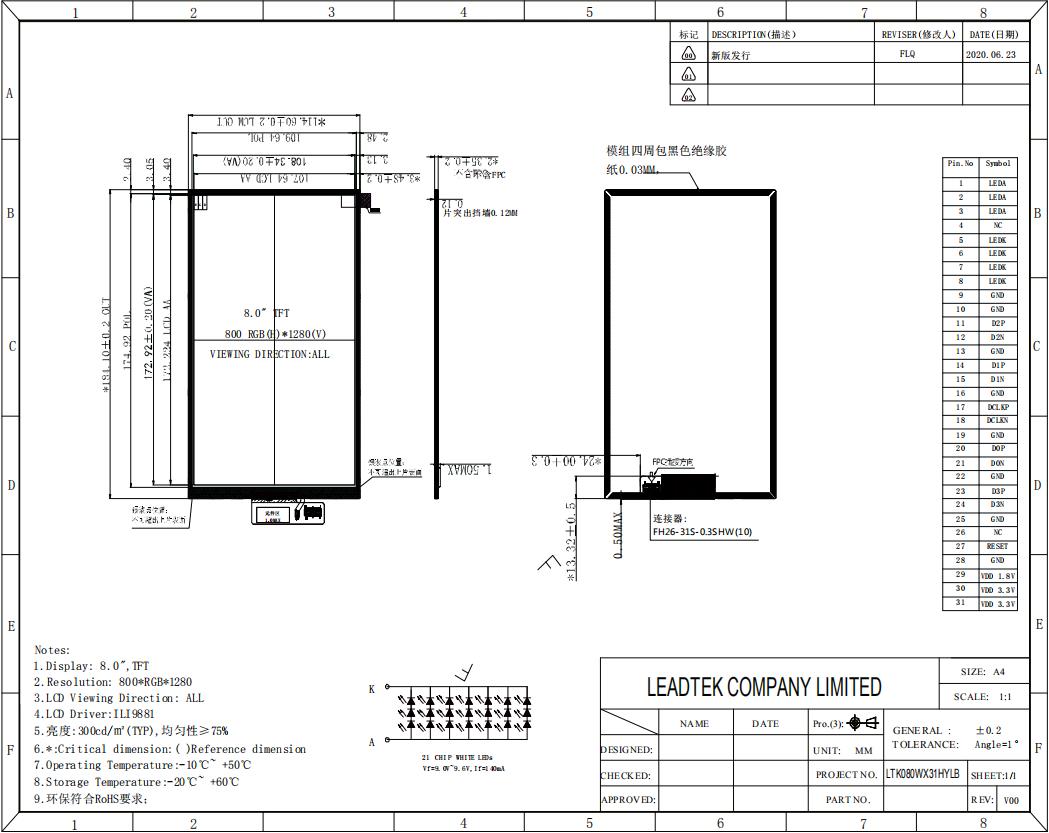

8.0 inch Module 800(RGB)x1280 with MIPI interface TFT display
LTK080WX31HYLB is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFTLCD has a 8 inch diagonallymeasured active display area with Full HD (800 horizontal by 1280 vertical pixel) resolution.(E)
- Product Details
|
Model Number |
LTK080WX31HYLB |
|
Size |
8'' |
|
Resolution |
800(RGB)x1280 |
|
Interface |
MIPI |
|
Outline dimension (mm) |
114.60 (H)*184.1 (V)*2.35(D) |
|
Active area (mm) |
107.64 (H)* 172.224 (V) |
|
Brightness |
300 |
|
Display model |
IPS |
