8.0 inch Module 800 RGB (H) x1280 (V) with MIPI interface TFT display
LTK080SV31BYL Display model 8.0” LCM is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 8.0(10:16) inch diagonally measured active display area with (800horizontal by 1280 vertical pixel) resolution.（E）
- Product Details
|
Model Number |
LTK080SV31BYL |
|
Size |
8.0'' |
|
Display model |
IPS |
|
Resolution |
800 RGB (H) x1280 (V) |
|
Interface |
MIPI |
|

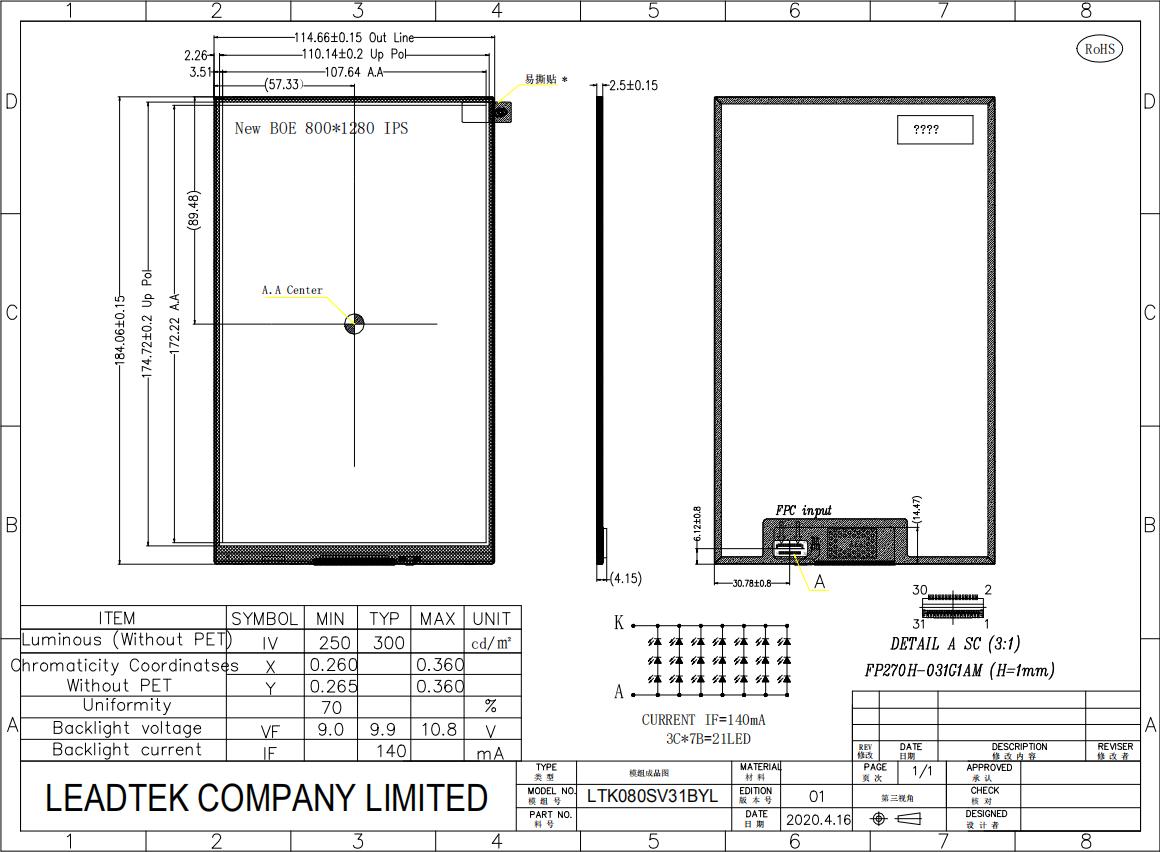

Outline dimension (mm) |
114.66 (H) x 184.16 (V) x2.5(D) |
|
Active area (mm) |
107.64(H) x 172.22 (V) |
|
Brightness |
300 |
