9.0 inch Module 1024 x RGB x 600 with MIPI interface TFT display
1. 9" (diagonal), 16:9, landscape, normally white, TN technology, amorphous silicon TFT LCD module
2. Viewing Angle (U/D/L/R) (CR>10): 70/70/50/70 (Typ.)
3. Viewing direction: 12:00 o’clock direction
4. Display resolution: 1024 x RGB x 600
5. Ture 8-bit color depth, display 16.7M colors
6. TFT-LCD Logic voltage (VDD): 1.8V
7. White LED backlight
8. FPC connection
9. FPC fire protection grade: UL94-V0
10. “RoHS” compliance.（E）
- Product Details
|
Model Number |
LTK090B3005Y |
|
Size |
9'' |
|
Display model |
TN |
|
Resolution |
1024 x RGB x 600 |
|
Interface |
MIPI |
|

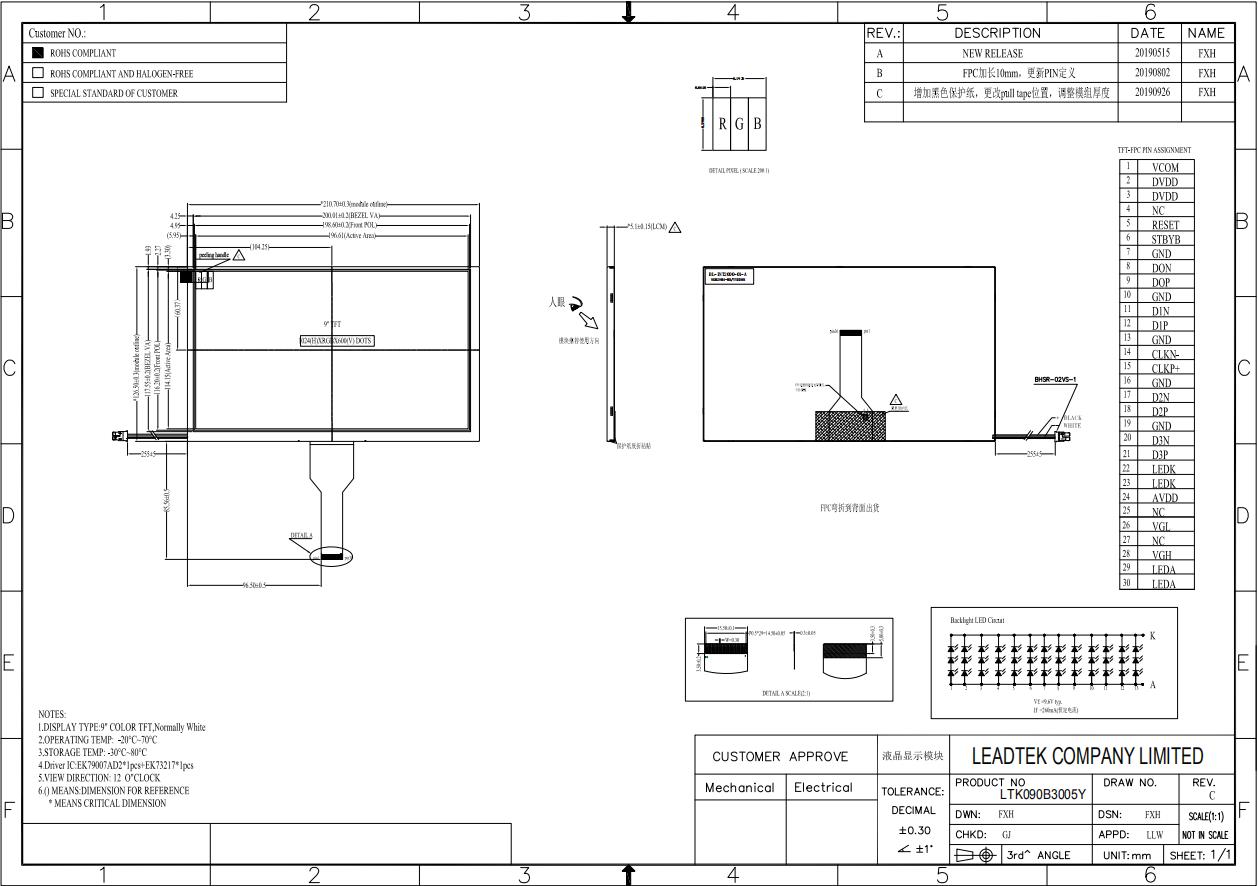

Outline dimension (mm) |
210.7(W) x 126.5(H) x 5.2(D) |
|
Active area (mm) |
196.61(W) x 114.15(H) |
| Brightness |
380 |
