3.5 Inch 320*240 resolution TFT LCD with SPI interface TN mode
This display module is a color active matrix TFT(Thin Film Transistor) liquid crystal display
(LCD) This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.5” contains 320*240 dots and can display up to 64 colors.(W)
(LCD) This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.5” contains 320*240 dots and can display up to 64 colors.(W)
- Product Details
|
Model: |
LTK350QV07 |
|
Size: |
3.5'' |
|
Cell Type: |
TN |
|
Resolution: |
320*240 |
|
Interface: |
SPI |
|

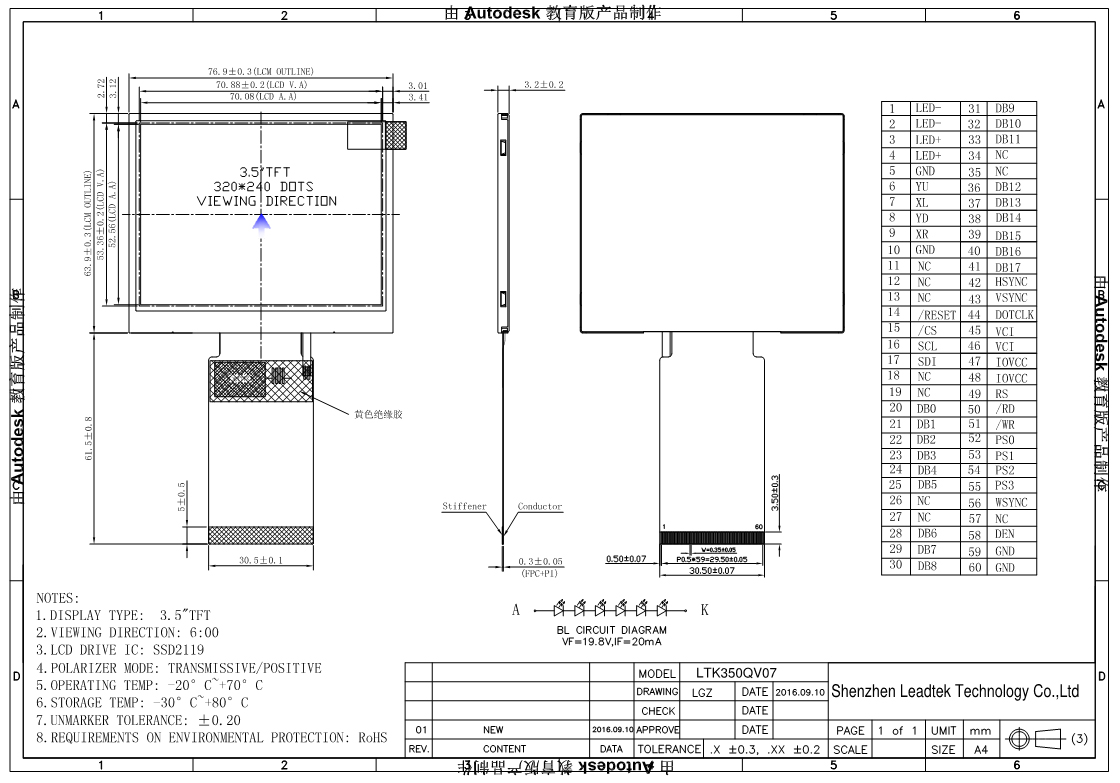

Outline Dimension: |
76.9*63.9*3.2(mm) |
|
Active Area: |
70.08*52.66(mm) |
