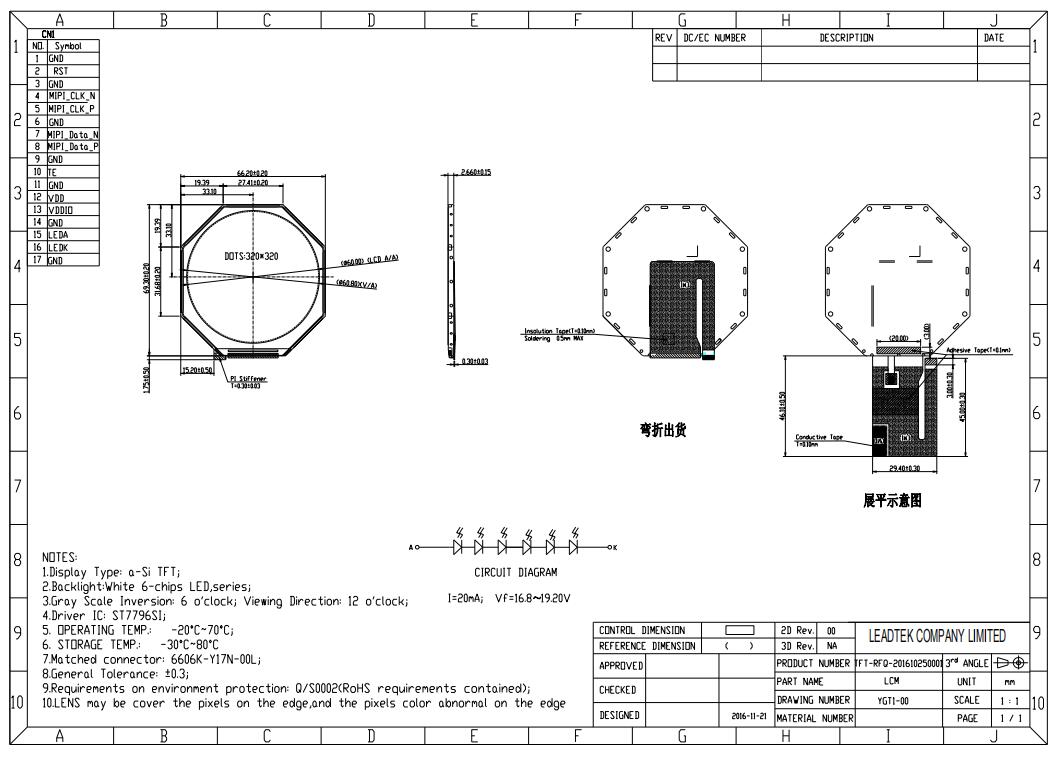

High brightness TN TFT LCM 3.34inch 320x320 round display with MIPI interface
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.1” contains 320x320 dots and can display. (C)
- Product Details
| Display Type: | 3.34''TFT, Normal White |
| Module PN#: | LTK0334B1701X |
| View direction: | 12 o'clock |
| Brightness: | 600 nits |
| Operating temperature: | -20℃ ~ +70℃ |
| Storage temperature: |
-30℃ ~ +80℃ |
