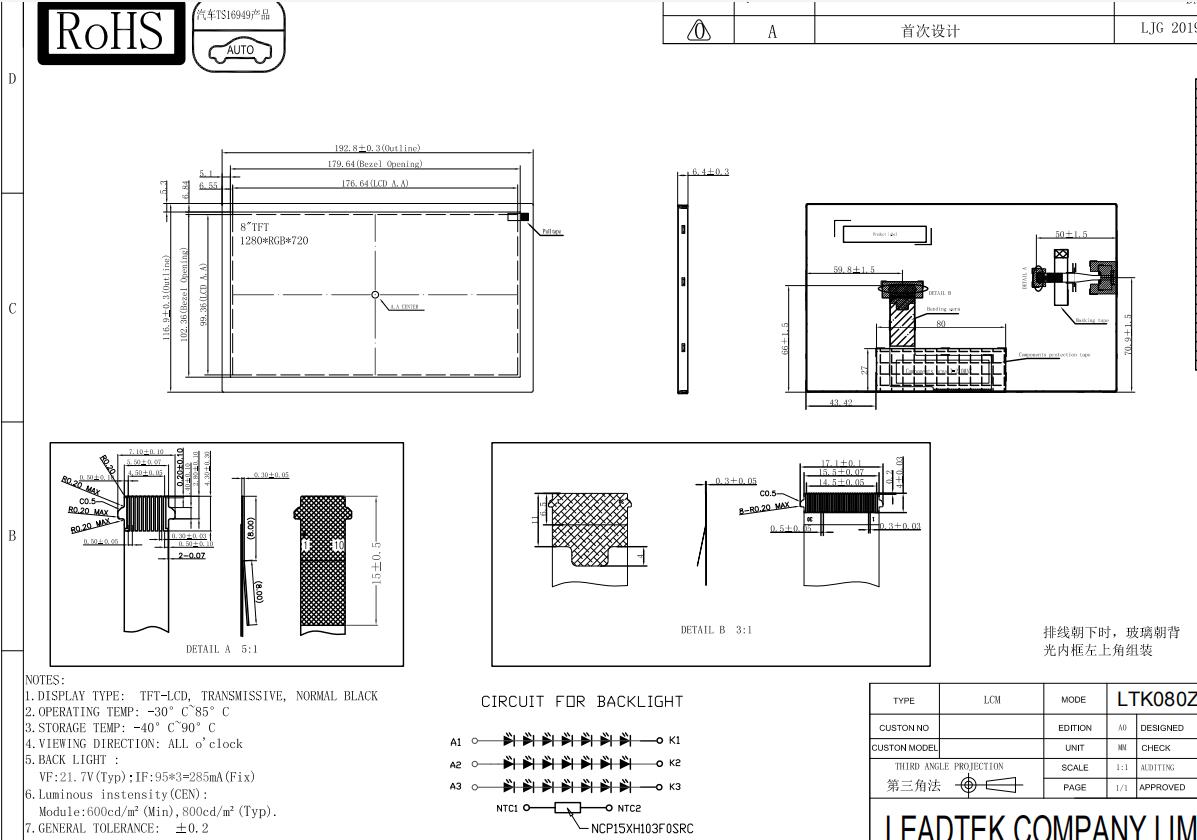

8inch Module 1280*720 with LVDS interface TFT display
This is 8.0-inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display)
module. It is composed of a 8.0 inch TFT-LCD panel, LCD Driver IC with T-con
integrated, FPC and a backlight unit. This is 8.0-inch TFT-LCD Normally Black Leadtek Display module, which is designed for Automotive, and other high reliability electronic products required high performance flat panel displays. It is designed for Touch Panel by air-gap bonding, instead of optical bonding by OCR. Requirements on Environmental Protection of this 8.0 inch module are Following RoHS.(E)
- Product Details
|
Model Number |
LTK080Z2172D |
|
Size |
8.0" |
|
Display model |
IPS |
|
Resolution |
1280*720 |
|
Outline dimension (mm) |
192.8x116.9x6.4 |
|
Interface |
LVDS |
|
Active area (mm) |
162*121.5 |
|
Brightness |
800 |
