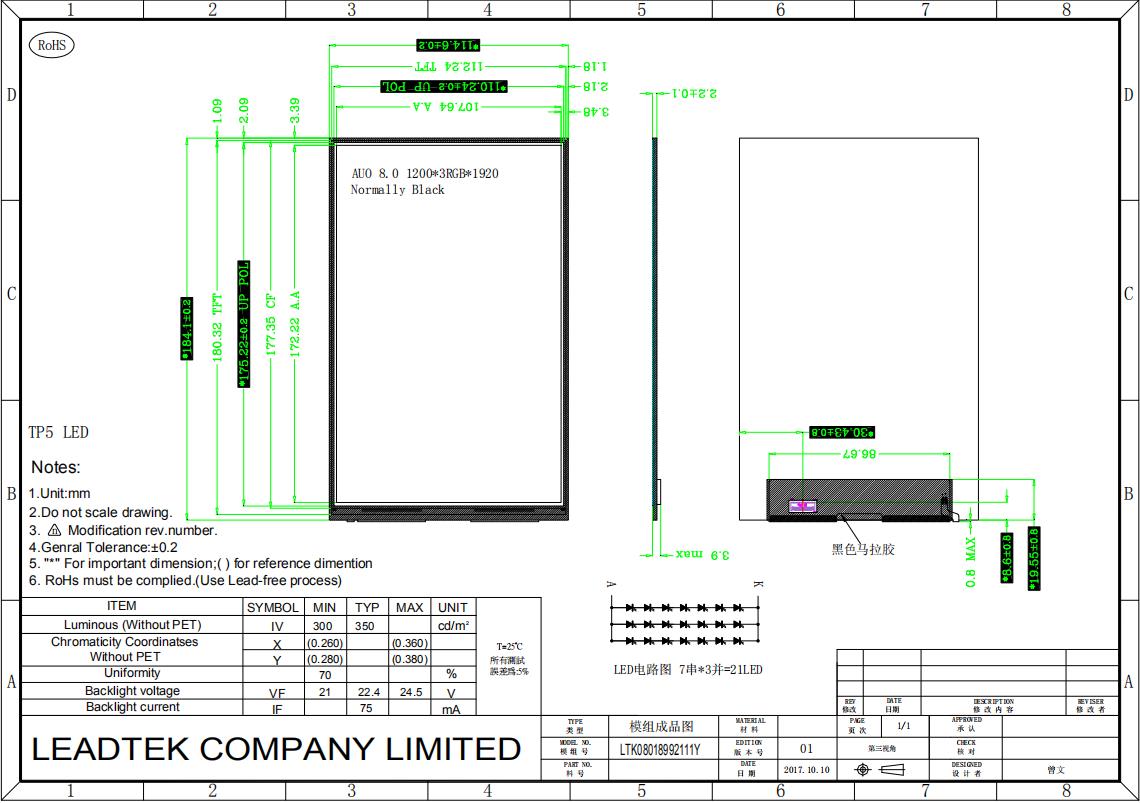

8inch Module 1200 RGB x1920 with MIPI interface TFT display
1.Unit:mm
2.Do not scale drawing
3. Modification rev.number
4.Genral Tolerance:±0.2
5. For important dimension;( ) for reference dimention
6. RoHs must be complied.(Use Lead-free process)
(E)
- Product Details
|
Model Number |
LTK08018992111Y |
| Size | 8.0" |
|
Resolution |
1200 RGB x1920 |
|
Interface |
MIPI |
|
Outline dimension (mm) |
114.60 (H) x 184.10 (V) x2.2(D) |
|
Active area (mm) |
107.64(H) x 172.22 (V) |
|
Brightness |
350 |
|
Display model |
IPS |
