8.8inch Module 480*1920 with MIPI (1 ch,8-bit) interface TFT display
LTK088H4005W is a color active matrix thin film transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switchingdevice. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 8.8 (1:4) inch diagonally measured active display area with (480 horizontal by 1920 vertical pixel) resolution.（E）
- Product Details
|
Model Number |
LTK088H4005W |
|
Size |
8.8" |
|
Display model |
IPS |
|
Resolution |
480*1920 |
|
Interface |
MIPI(1 ch,8-bit) |
|

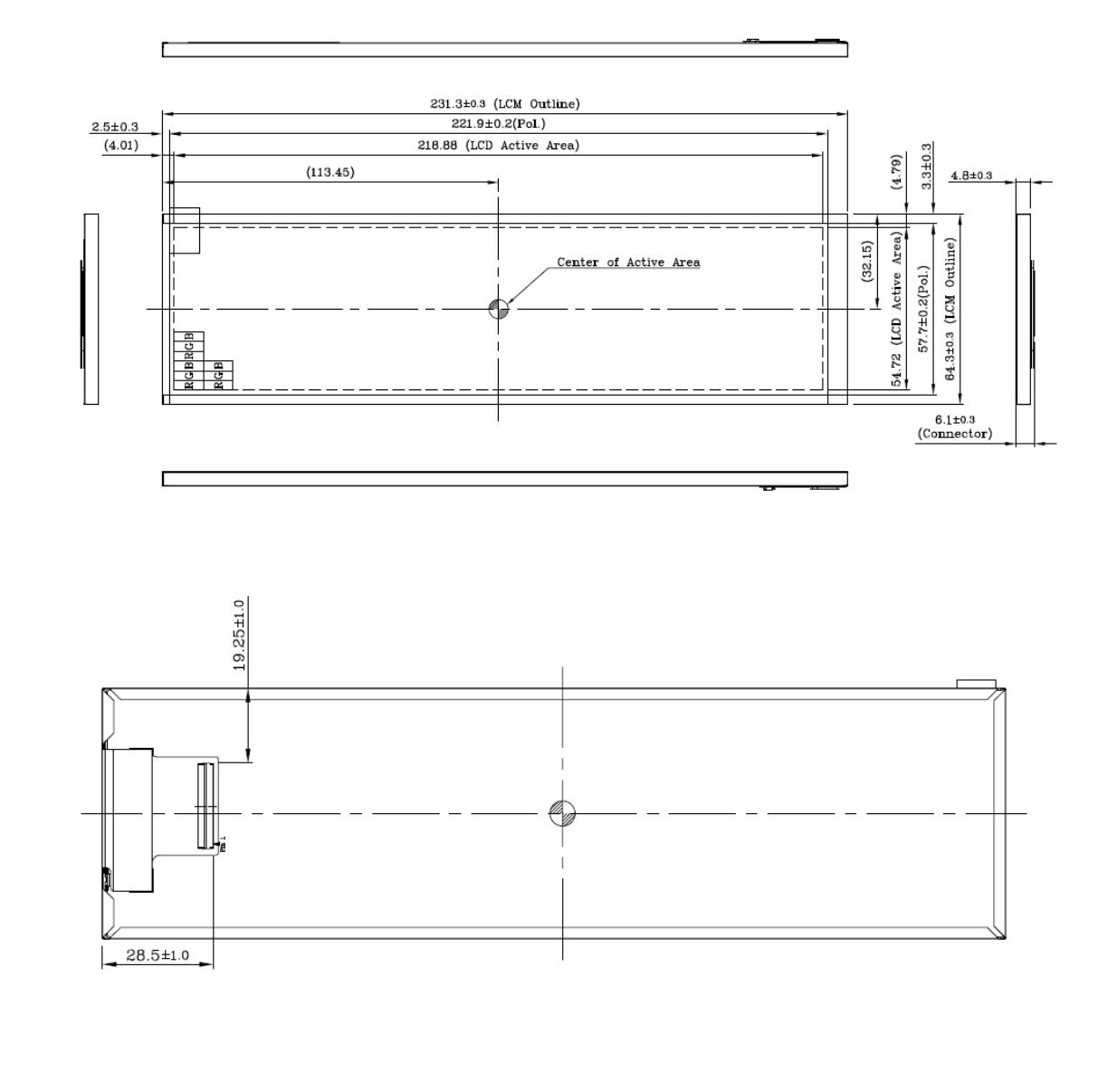

Outline dimension (mm) |
64.3（H)* 231.3(V)*4.8(D) |
|
Active area (mm) |
54.72(H) x 218.88 |
| Brightness |
600 |
