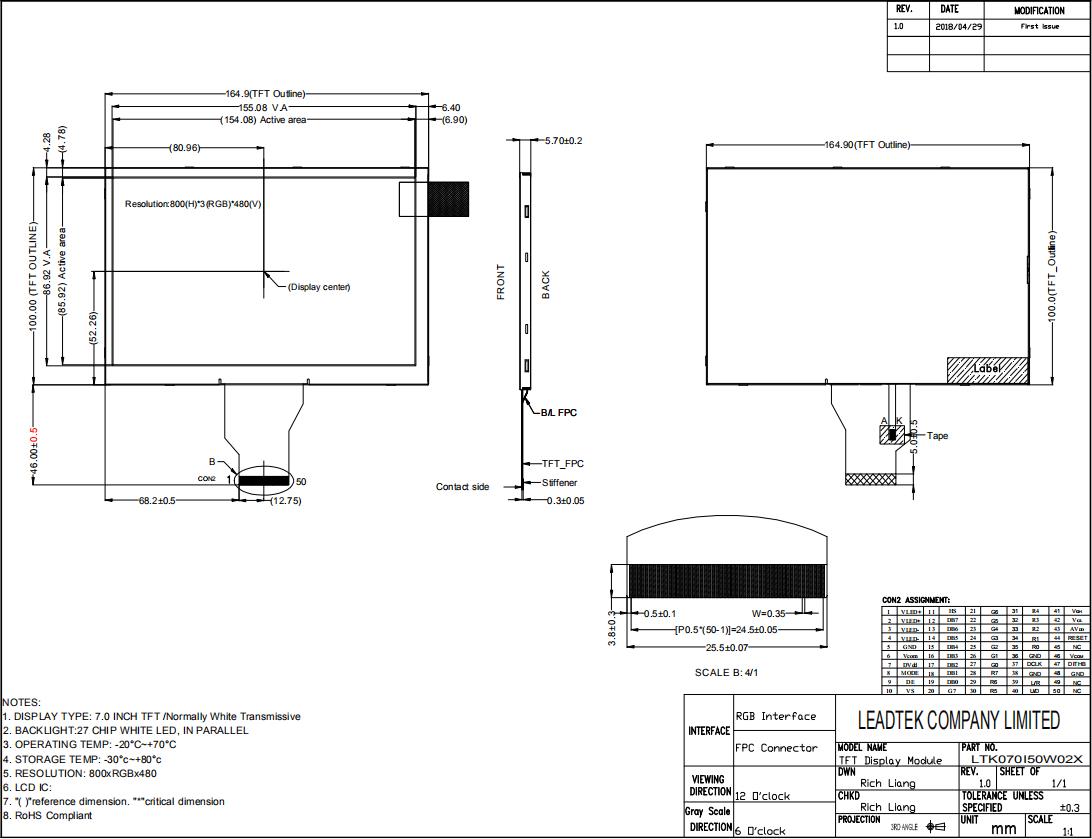

7inch Module 800(RGB)X480 with MIPI interface TFT display
1. DISPLAY TYPE: 7.0 INCH TFT /Normally White Transmissive
2. BACKLIGHT:27 CHIP WHITE LED, IN PARALLEL
3. OPERATING TEMP: -20°C~+70°C
4. STORAGE TEMP: -30°c~+80°c
5. RESOLUTION: 800xRGBx480
2. BACKLIGHT:27 CHIP WHITE LED, IN PARALLEL
3. OPERATING TEMP: -20°C~+70°C
4. STORAGE TEMP: -30°c~+80°c
5. RESOLUTION: 800xRGBx480
6. RoHS Compliant
（E）
- Product Details
|
Model Number |
LTK070I50W02X |
|
Size |
7.0'' |
|
Display model |
TN |
|
Resolution |
800(RGB)X480 |
|
Interface |
24-bit RGB |
|
Outline dimension (mm) |
164.9*100.0*5.7 |
|
Active area (mm) |
154.08 x 85.92 |
|
Brightness |
1800 |
