7inch Module 1024 RGB (H) x 600 (V) TFT display
LTK070B4060W is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 7 (16:9) inch diagonally measured active display area with (1024 horizontal by 600 vertical pixel) resolution.（E）
- Product Details
|
Model Number |
LTK070B4060W |
|
Size |
7.0'' |
|
Display model |
TN |
|
Resolution |
1024 RGB (H) x 600 (V) |
|
Interface |
LVDS |
|

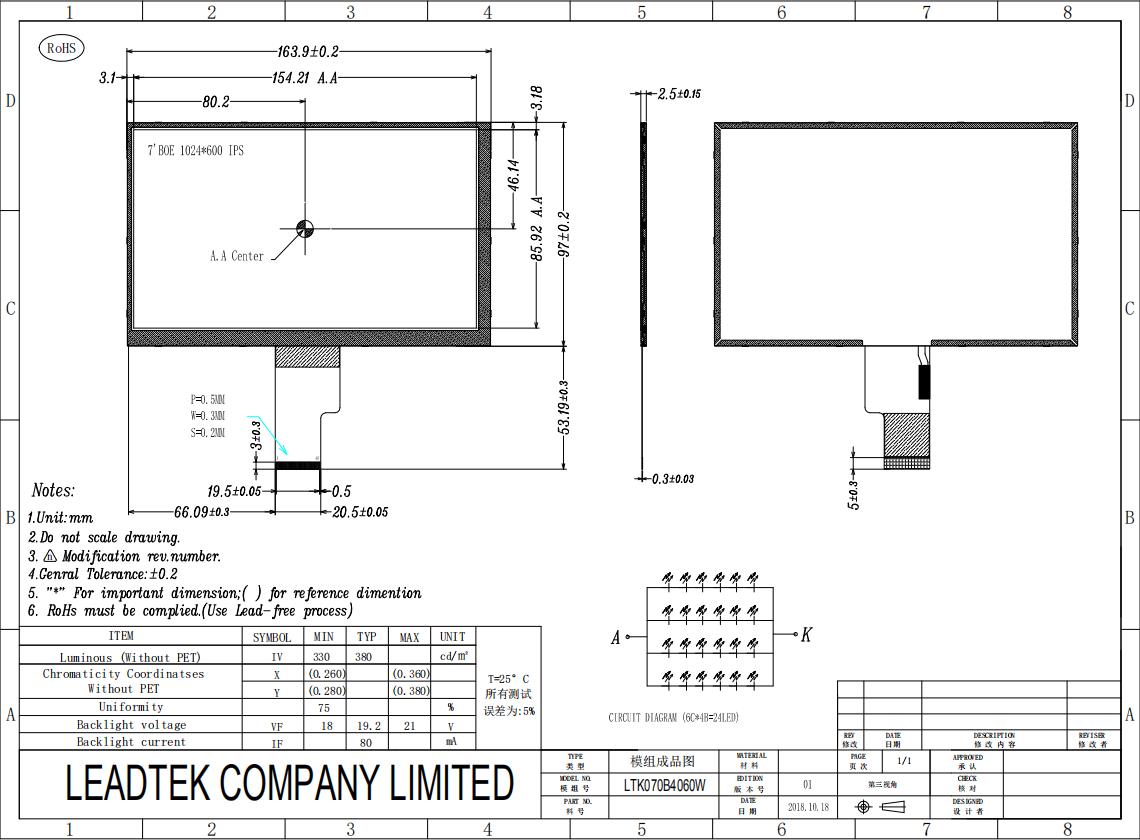

Outline dimension (mm) |
163.8 (H) x 97 (V) x2.6 (D) |
|
Active area (mm) |
154.21 (H) x 85.92 (V) |
|
Brightness |
400 |
