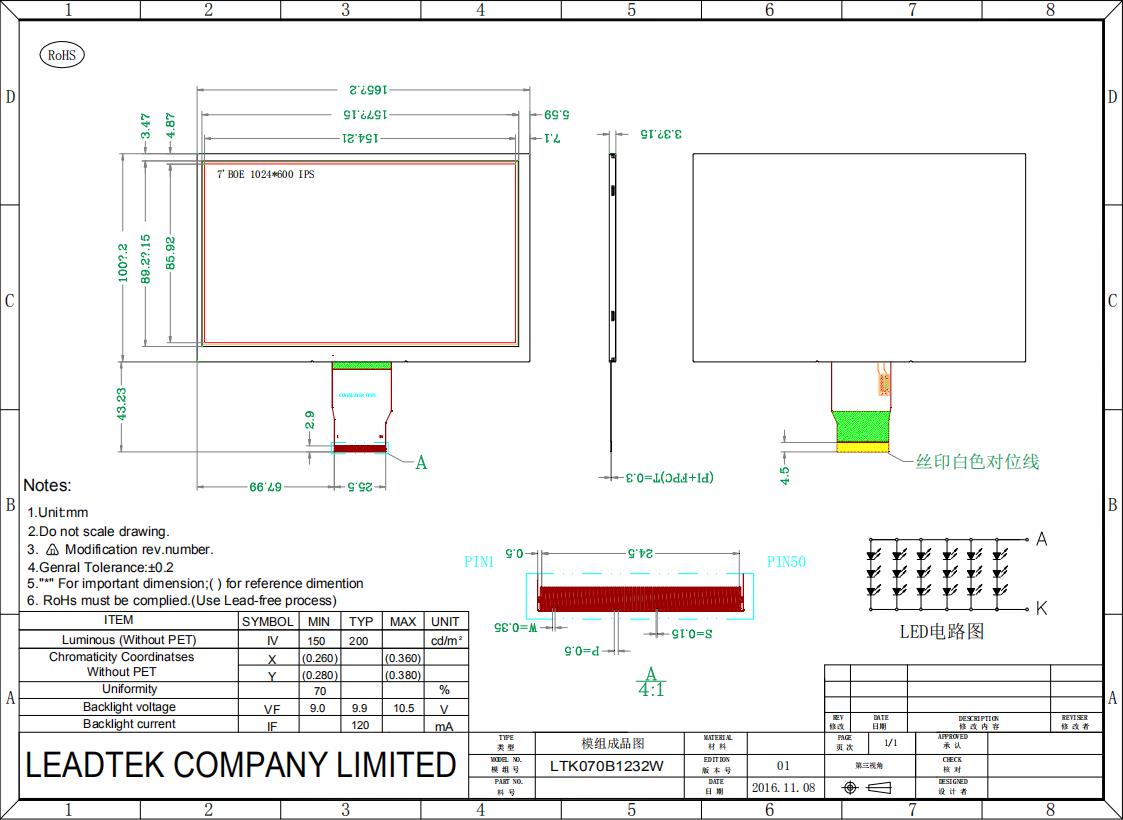

7inch Module 1024 RGB (H) x 600 (V) TFT display
1.Unit:mm B
2. Modification rev.number.
3.Do not scale drawing.
4.Genral Tolerance:±0.2
2. Modification rev.number.
3.Do not scale drawing.
4.Genral Tolerance:±0.2
5. RoHs must be complied.(Use Lead-free process)
（E）
- Product Details
|
Model Number |
LTK070B1232W |
|
Size |
7.0'' |
|
Display model |
TN |
|
Resolution |
1024RGB(H)x600 (V) |
|
Interface |
RGB vertical stripes |
|
Outline dimension (mm) |
165 (H) x 100 (V) x3.4(D) |
|
Active area (mm) |
154.21 (H) x 85.92 (V) |
|
Brightness |
200 |
