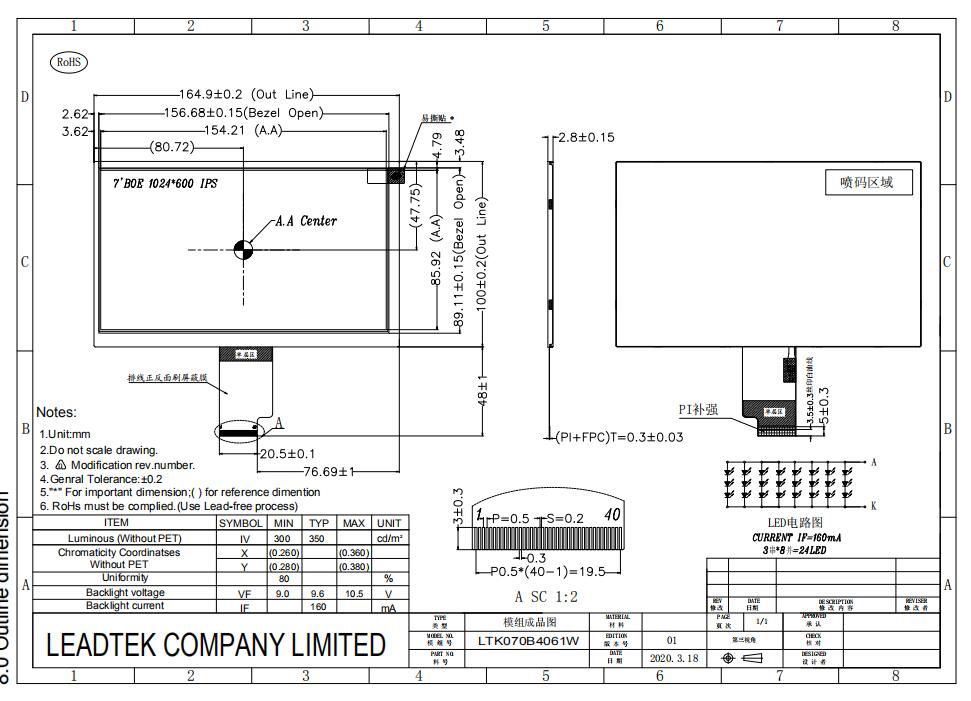

7.0inch smart home control panel LVDS interface Normally black panel 1024x600 TFT LCM
LTK070B4061W is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses
amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving
circuit.This TFT LCD has a 7 (16:9) inch diagonally measured active display area with (1024 horizontal
by600vertical pixel) resolution. (C)
- Product Details
| Display Type: | 7.0''TFT, Normal Black |
| Module PN#: | LTK070B4061W |
| View direction: | 85/85/85/75 |
| Brightness: | 350 nits |
| Operating temperature: | -10℃ ~ +50℃ |
| Storage temperature: |
-20℃ ~ +60℃ |
