6.95inch Module 600(H) x3(RGB)x 1024 (V) with MIPI interface TFT display
LTK0695HD30IYLW is color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 6.95 (16:9) inch diagonally measured active display area with (600 horizontal by 1024 vertical pixel) resolution.（E）
- Product Details
|
Model Number |
LTK0695HD30IYLW |
|
Size |
6.95'' |
|
Display model |
IPS |
|
Resolution |
600(H) x3(RGB)x 1024 (V) |
|
Interface |
MIPI |
|

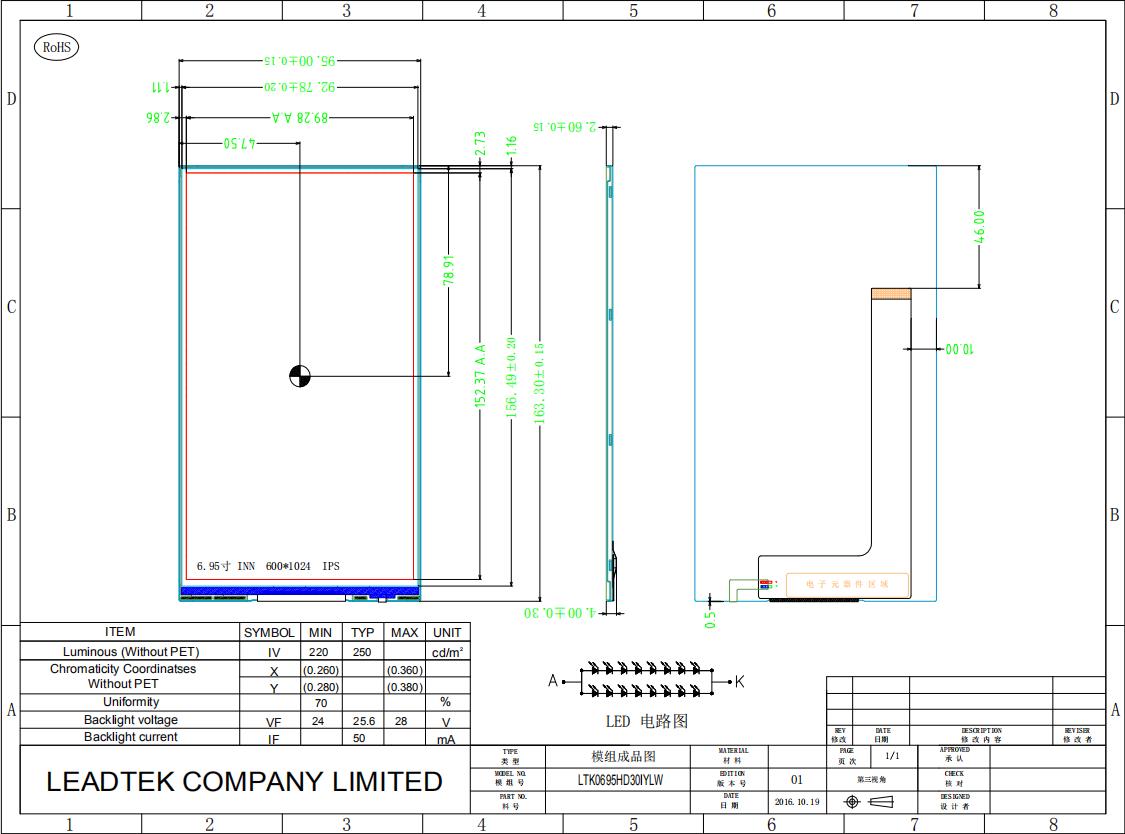

Outline dimension (mm) |
95(H) x 163.3V) x2.6 |
|
Active area (mm) |
89.28(H) x 152.371 (V) |
| Brightness |
250 |
