6.65inch Module 1080(W)×2340(H) with MIPI 4LANE interface TFT display
LTK0665A4001R is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)
that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 6.65 inch diagonally measured active display area with (1080 horizontal by 2340 vertical pixel) resolution.(E)
- Product Details
|
Model Number |
LTK0665A4001R |
|
Size |
6.65'' |
|
Display model |
AMOLED |
|
Resolution |
1080(W)×2340(H) |
|
Interface |
MIPI 4LANE |
|

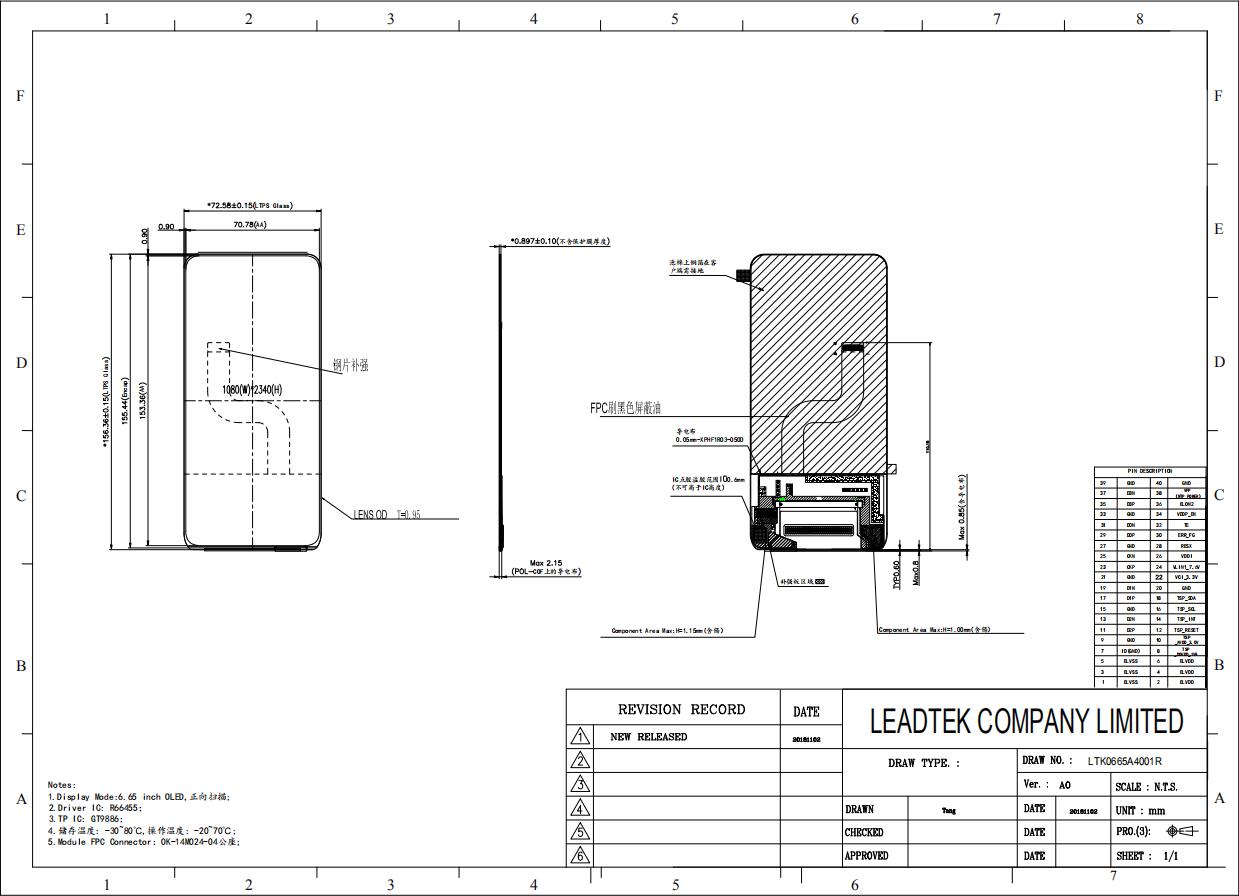

Outline dimension (mm) |
72.58(W)x156.36(H)x0.93(D) |
|
Active area (mm) |
70.78(W)×153.36 (H) |
|
Brightness |
430 |
