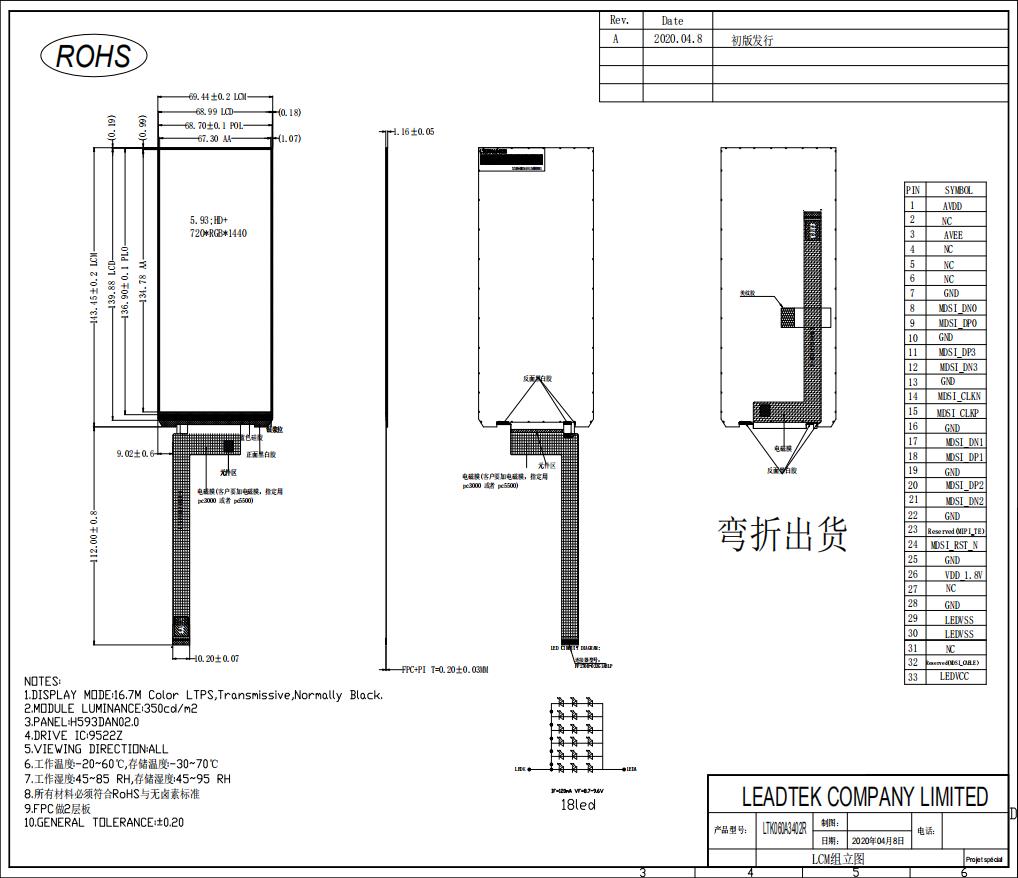

6.0inch Module 720 x RGB x 1440 with MIPI interface TFT display
5.93”(diagonal), 720 x RGB x 1440 dots, 16.7M colors, Transmissive, TFT LCD module.
Panel:H592DAN02.0
Viewing Direction:LTPS
Driving IC: 9522Z
MIPI interface
Supply volrage for logic 2.8V (typ.)
I/O power voltage: 1.8V (typ.).
With not touch panel.(E)
- Product Details
|
Model Number |
LTK060A3402R |
|
Size |
6'' |
|
Display model |
IPS |
|
Resolution |
720 x RGB x 1440 |
|
Interface |
MIPI |
|
Outline dimension (mm) |
69.44(W) x 143.45(H) x 1.16(D) |
|
Active area (mm) |
67.3(W) x134.78(H) |
|
Brightness |
350 |
