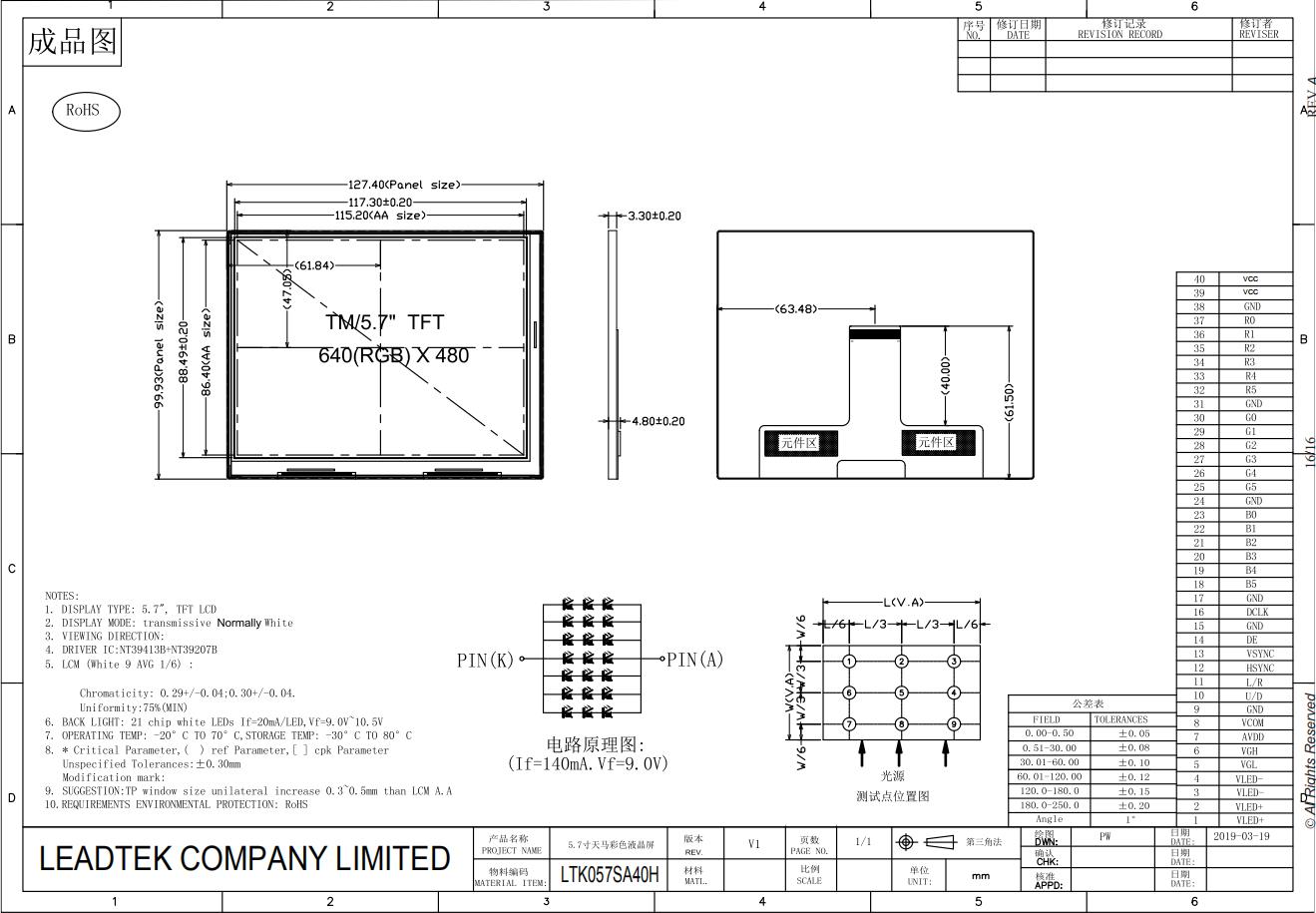

5.7inch Module 640 x 3(RGB) x480 with TTL RGB interface TFT display
1. DISPLAY TYPE: 5.7'', TFT LCD
2. DISPLAY MODE: transmissive Normally White
4. DRIVER IC: NT39413B+NT39207B
5. LCM (White 9 AVG 1/6) :Chromaticity: 0.29+/-0.04; 0.30+/-0.04. Uniformity:75%(MIN)
6. BACK LIGHT: 21 chip white LEDs If=20mA/LED, Vf=9.0V`10.5V
7. OPERATING TEMP: -20℃ TO 70℃ ,STORAGE TEMP: -30℃ TO 80℃
8. SUGGESTION:TP window size unilateral increase 0.3`0.5mm than LCM A.A
9. REQUIREMENTS ENVIRONMENTAL PROTECTION: RoHS9（E）
2. DISPLAY MODE: transmissive Normally White
4. DRIVER IC: NT39413B+NT39207B
5. LCM (White 9 AVG 1/6) :Chromaticity: 0.29+/-0.04; 0.30+/-0.04. Uniformity:75%(MIN)
6. BACK LIGHT: 21 chip white LEDs If=20mA/LED, Vf=9.0V`10.5V
7. OPERATING TEMP: -20℃ TO 70℃ ,STORAGE TEMP: -30℃ TO 80℃
8. SUGGESTION:TP window size unilateral increase 0.3`0.5mm than LCM A.A
9. REQUIREMENTS ENVIRONMENTAL PROTECTION: RoHS9（E）
- Product Details
|
Model Number |
LTK057SA40H |
|
Size |
5.7'' |
|
Display model |
TN |
|
Resolution |
640 x 3(RGB) x480 |
|
Interface |
TTL RGB |
|
Outline dimension (mm) |
127.4(W) x 99.93(H) x3.3(D) mm |
|
Active area (mm) |
115.2(W) x 86.4(H) mm |
| Brightness |
450 |
