5.7inch Module 2160X3840 with MIPI DSI 4lane x 2 interface TFT display
1. Viewing Angle: All
2. Display mode: TFT/Normal Black
3. Response time:Max. 5ms (G-to-G, 10%~90%)
4. PPI:773
2. Display mode: TFT/Normal Black
3. Response time:Max. 5ms (G-to-G, 10%~90%)
4. PPI:773
5. All the raw material are Rohs complicant
（E）

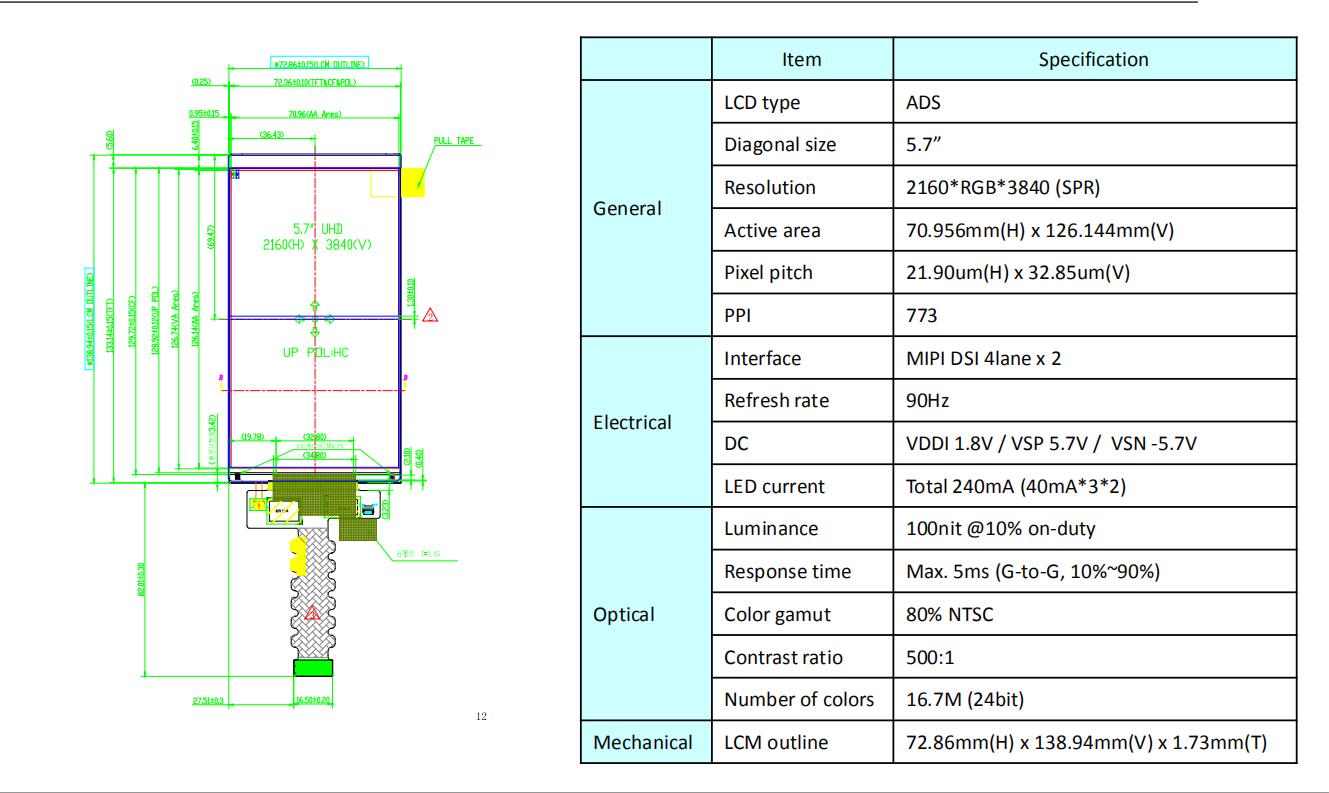

- Product Details
|
Model Number |
LTK057B4K |
|
Size |
5.7'' |
|
Display model |
IPS |
|
Resolution |
2160X3840 |
|
Interface |
MIPI DSI 4lane x 2 |
|
Outline dimension (mm) |
72.86(H) x 138.94(V) x 1.73 |
|
Active area (mm) |
70.956(H) x 126.144(V) |
|
Brightness |
100 |
