5.5inch Module 1440(H) × 2560(V) with MIPI DSI v1.2, 8 lanes, max.1Gbps/lane, 3:1 DSC interface TFT display

The 5.5inch TFT-LCD Module is a Color Active Matrix TFT LCD panel using LTPS (Low

Temperature Poly-silicon) TFT's (Thin Film Transistors) as an active switching devices.This module has a 5.5 inch diagonally measured active area with 1440*2560 resolutions(1440 horizontal by 2560 vertical pixel array). Each pixel is divided into RED, GREEN,BLUE dots which are arranged in vertical stripe and this module can display 16.7Mcolors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.（E）

Download the Specification

Product Details

Model Number	LTK055B2501B
Size	5.5''
Display model	IPS
Resolution	1440(H) × 2560(V)
Interface	MIPI DSI v1.2, 8 lanes, max.1Gbps/lane, 3:1 DSC

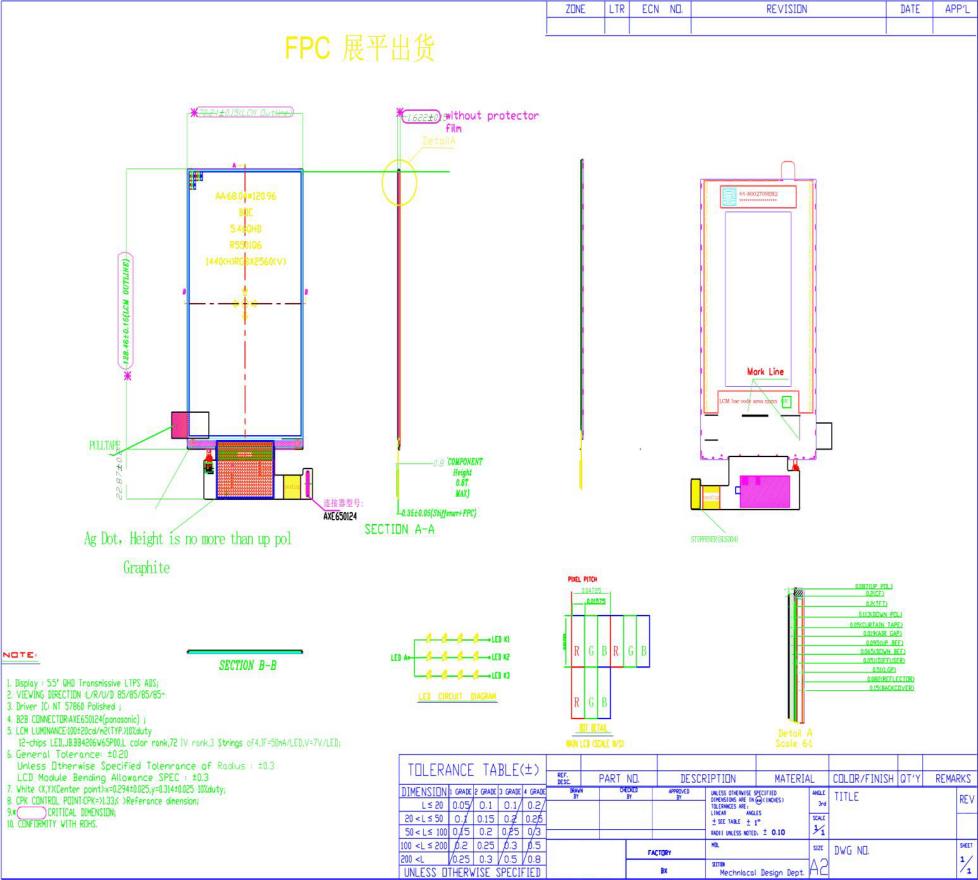

Outline dimension (mm)	70.24(H) ×128.46(V) ×1.622(T)
Active area (mm)	68.04(H) ×120.96(V)
Brightness	100
