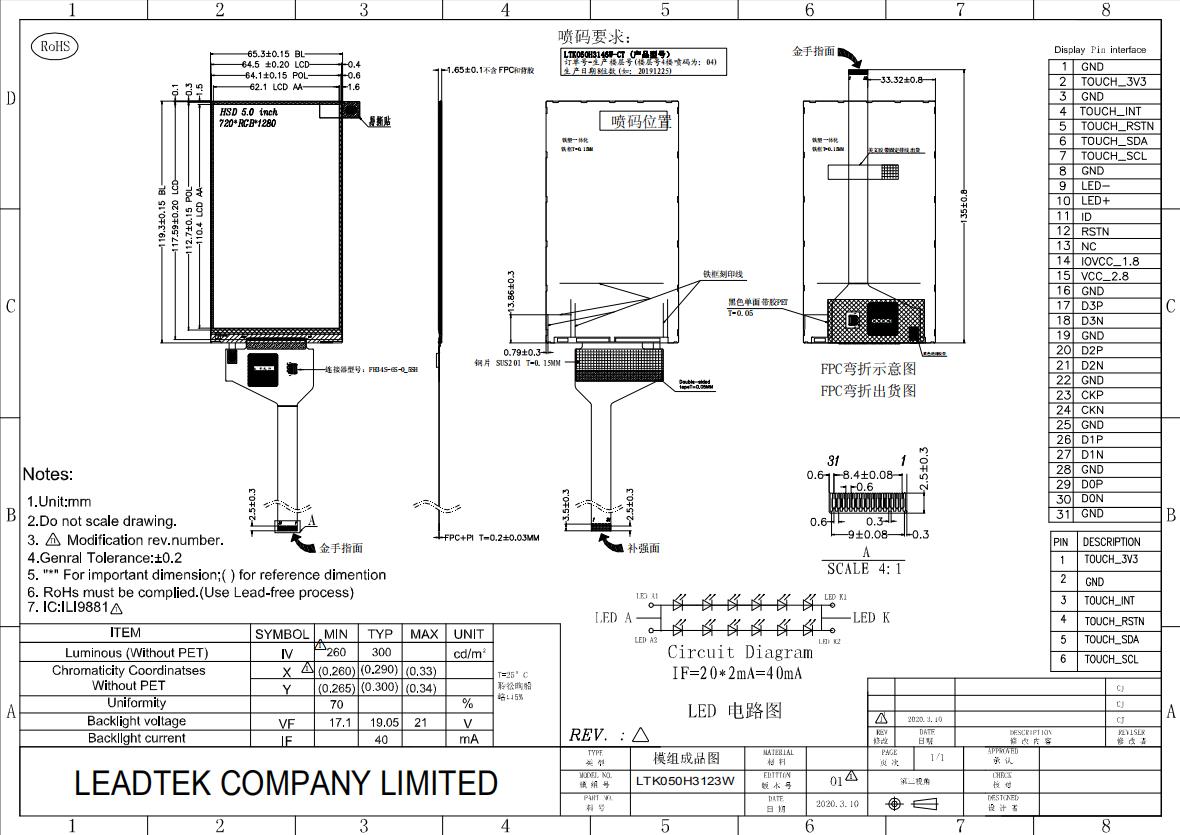

5.0inch Module 720(H) x 1280 (V) with MIPI interface TFT display
LTK050H3123W color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit. This TFT LCD has a 5.0 inch diagonally measured active display area with (720 horizontal by 1280 vertical pixel) resolution.（E）
- Product Details
|
Model Number |
LTK050H3123W |
|
Size |
5.0'' |
|
Display model |
IPS |
|
Resolution |
720(H) x 1280 (V) |
|
Interface |
MIPI |
|
Outline dimension (mm) |
65.3(H) x 119.3(V) x1.65(D) |
|
Active area (mm) |
62.1(H) x 110.4 (V) |
|
Brightness |
300 |
