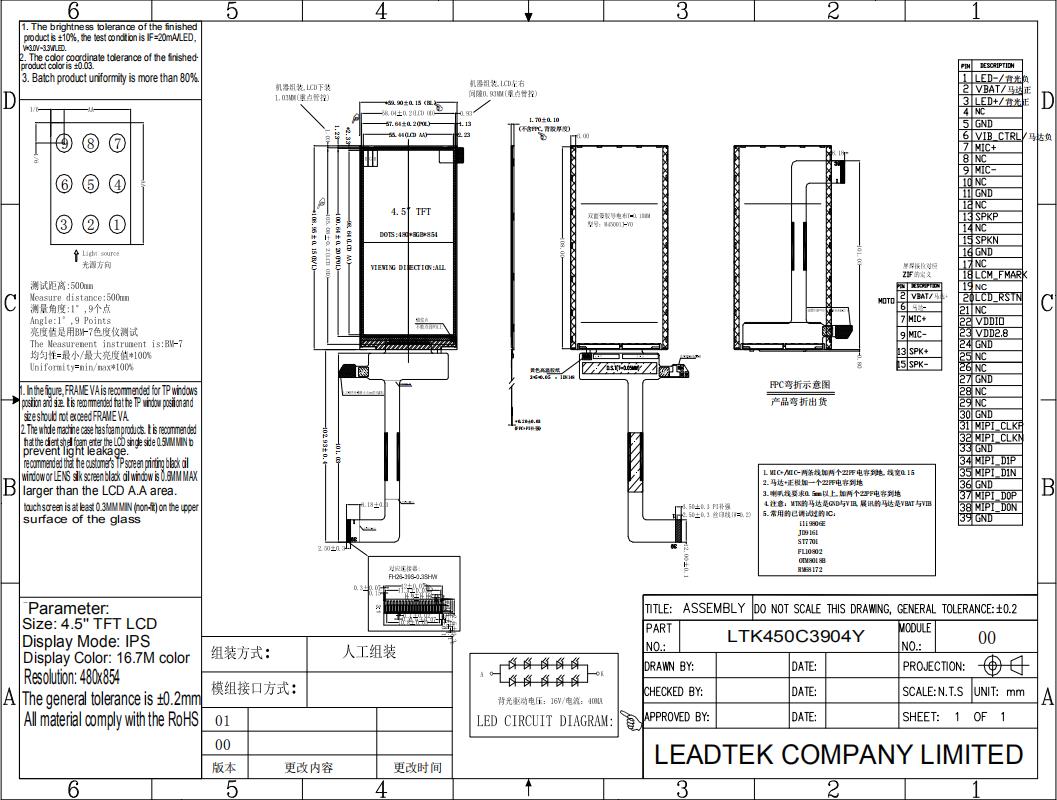

4.5inch Module 480(R.G.B)*854 with MIPI interface TFT display
The 4.5inch TFT-LCD Module is a Color Active Matrix TFT LCD panel using LTPS (Low Temperature Poly-silicon) TFT's (Thin Film Transistors) as an active switching devices. This module has a 2.1inch diagonally measured active area with 480(R.G.B)*854 resolutions (480horizontal by1854 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.(E)
- Product Details
|
Model Number |
LTK450C3904Y |
|
Size |
4.5" |
|
Display model |
IPS |
|
Resolution |
480(R.G.B)*854 |
|
Interface |
MIPI |
|
Outline dimension (mm) |
59.90(W)*108.95(H)*1.70(T) |
|
Active area (mm) |
55.44(W)* 98.64(H) |
| Brightness | / |
