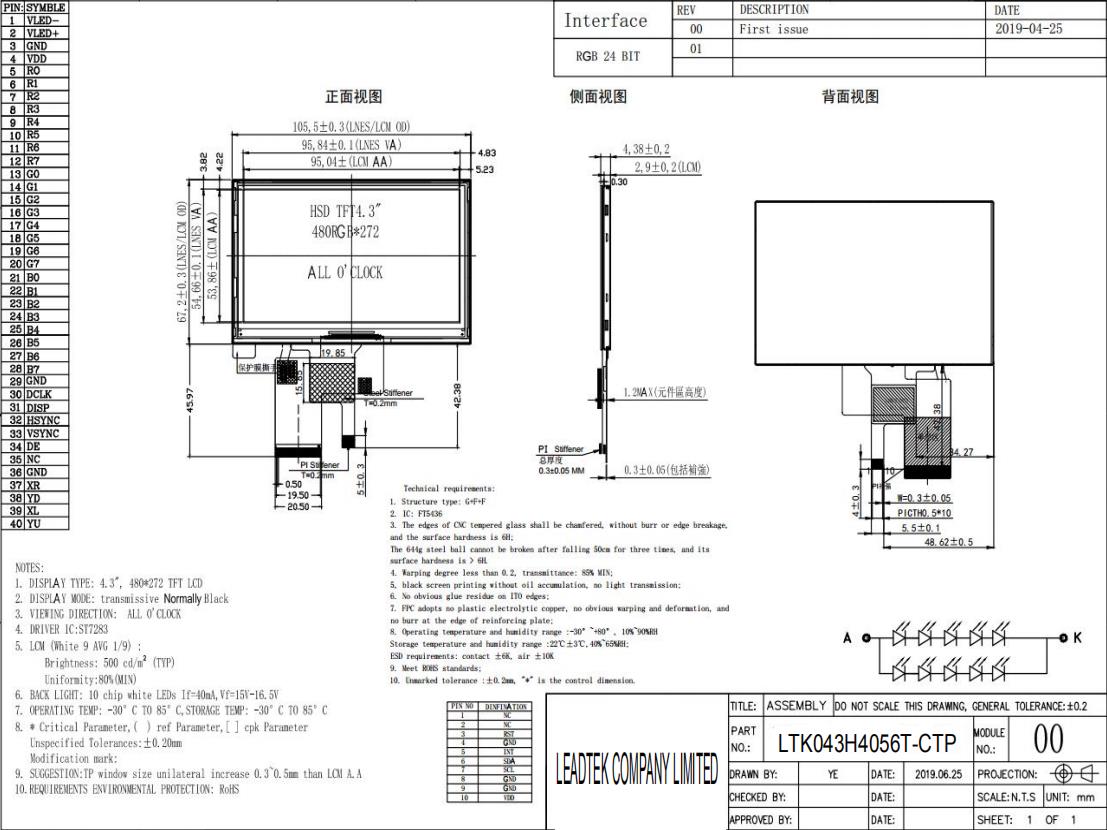

4.3inch Module 480*3RGB(H)X272(V) with 24BIT RGB interface TFT display
This specification applies to the LCD module that is supplied by LEADTEK LCD specification: Dots 480xRGBx272. As to basic specification of the driver IC, refer to the IC (Sitronix :ST7283 ) specification and data book.All material & processing of the LCD module should be Lead Free.（E）
- Product Details
|
Model Number |
LTK043H4056T-CTP |
|
Size |
4.3" |
|
Display model |
IPS |
|
Resolution |
480*3RGB(H)X272(V)
|
|
Interface |
24BIT RGB
|
|
Outline dimension (mm) |
105.5 x 67.2x4.38
|
|
Active area (mm) |
95.04(H) x 53.856(V)
|
| Brightness | 500 |
