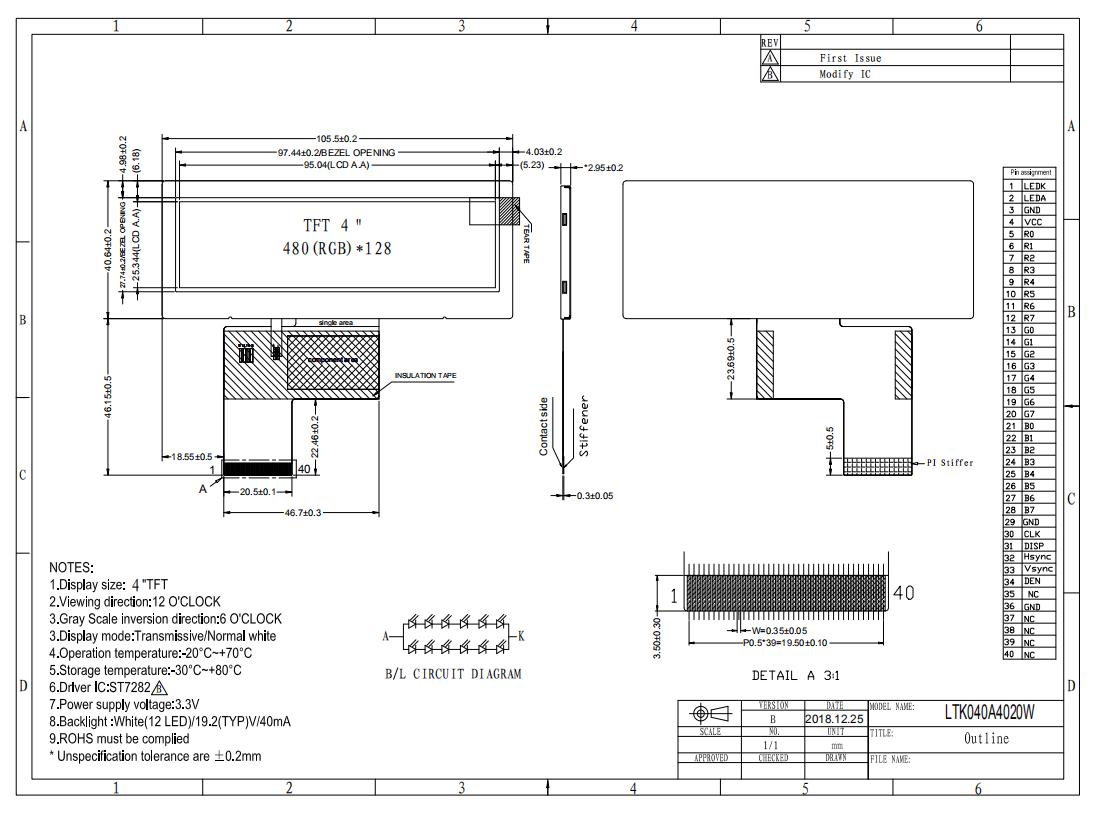

4.0inch 480*128 resolution TFT LCD with 24-bit RGB interface TN mode
LTK040A4020W is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module,
a driver circuit, and a back-light unit.The resolution of a 4.0” contains 480*128 dots(W).
- Product Details
|
Model: |
LTK040A4020W |
|
Size: |
4.0'' |
|
Cell Type: |
TN |
|
Resolution: |
480*128 |
|
Interface: |
RGB |
|
Outline Dimension: |
105.5*40.64*2.95(mm) |
|
Active Area: |
95.04*25.344(mm) |
