3.97 inch 480*800 TFT LCD with RGB interface IPS display mode
This display module is a color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.97” contains 480*800 dots and can display up to 64 colors.(W)
- Product Details
|
Model: |
LTK0397H4502T-CTP |
|
Size: |
3.97'' |
|
Cell Type: |
IPS |
|
Resolution: |
480*800 |
|
Interface: |
RGB |
|

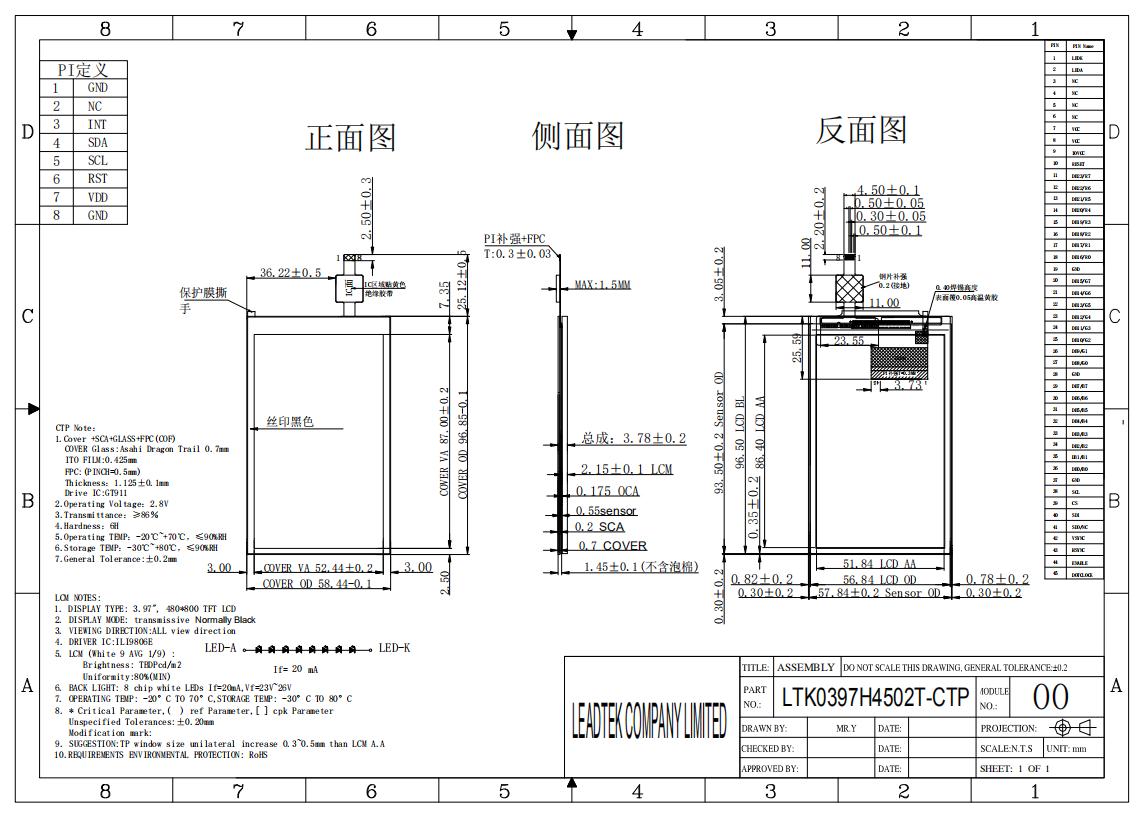

Outline Dimension: |
58.44*96.50*3.78(mm) |
|
Active Area: |
51.84*86.4(mm) |
