3.46inch Module 480(RGB)X1280 with MIPI interface TFT display
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.46” contains 340(RGB)X800 dots and can display up to 16.7M colors.（E）
- Product Details
|
Model Number |
LTK346HS4010B |
|
Size |
3.46'' |
|
Display model |
IPS |
|
Resolution |
340(RGB)X800 |
|
Interface |
MIPI |
|

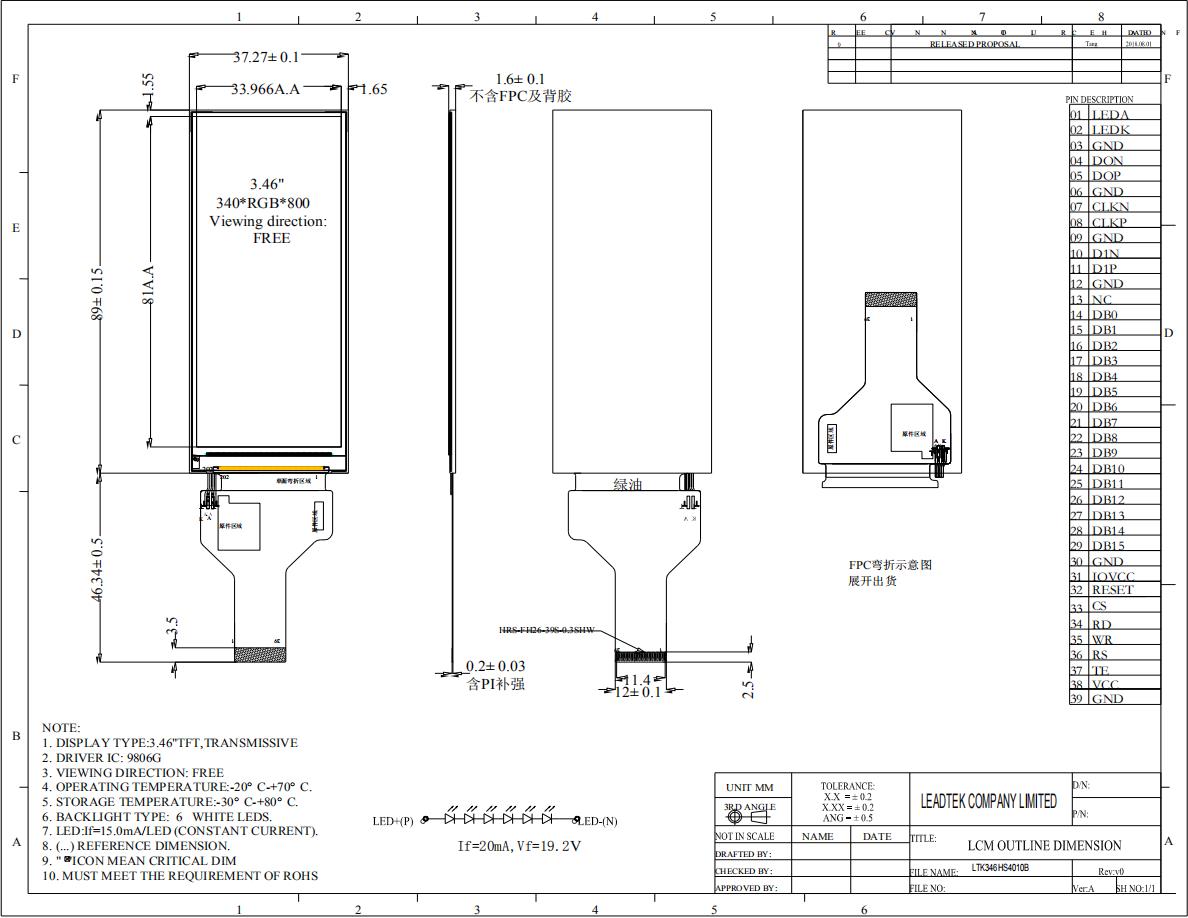

Outline dimension (mm) |
89*37.27*0.7 |
|
Active area (mm) |
81*33.97 |
|
Brightness |
350 |
