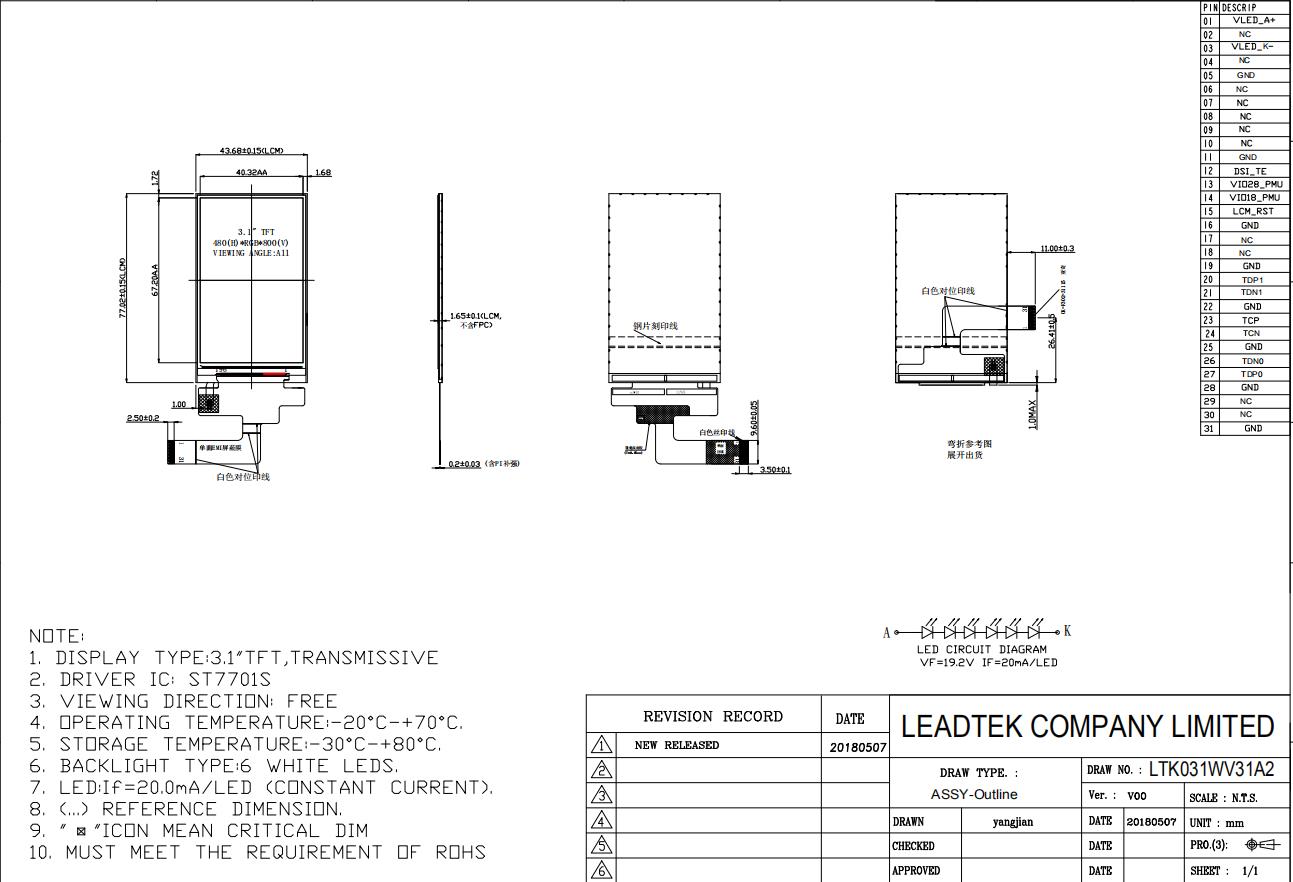

3.1inch Module 480(RGB)X800 with 2lane-MIPI interface TFT display
1. DISPLAY TYPE:3.1"TFT,TRANSMISSIVE
2. DRIVER IC: ST7701S
3. VIEWING DIRECTION: Free
4. OPERATING TEMPERATURE:-20°C-+70°C.
5. STORAGE TEMPERATURE:-30°C-+80°C.
6. BACKLIGHT TYPE: 6 WHITE LEDS.
7. LED:If=20.0mA/LED (CONSTANT CURRENT).
2. DRIVER IC: ST7701S
3. VIEWING DIRECTION: Free
4. OPERATING TEMPERATURE:-20°C-+70°C.
5. STORAGE TEMPERATURE:-30°C-+80°C.
6. BACKLIGHT TYPE: 6 WHITE LEDS.
7. LED:If=20.0mA/LED (CONSTANT CURRENT).
8. MUST MEET THE REQUIREMENT OF ROHS
(E)
- Product Details
Model Number |
LTK031WV31A2 |
Size |
3.1" |
Display model |
IPS |
Resolution |
480(RGB)X800 |
Interface |
2lane-MIPI |
Outline dimension (mm) |
43.68(H) ×77.02(V)×1.65(T) |
Active area (mm) |
40.32 (H)×67.20(V) |
Brightness |
350 |
